STM32CubeIDE 2.0.0 shows ioc files as text

[vernture]

I recently updated my stm32cubeide from 19 to 20.0.0 but the .ioc files of my existing projects open as text file not graphical as before.

How to fix it to work as before?

PS: I mistakenly chose VS-code target and it's not possible to delete the post and repost. I use STM32CubeIDE on Windows and my issue have nothing to do with vs-code (I don't use it whatsoever)



[TDK]

 STM32CubeIDE v2.0.0 doesn't have STM32CubeMX built-in. You will need to download and install it separately and open the IOC file there. This is intended and included in the release notes.



STM32CubeIDE 2.0.0 released - STMicroelectronics Community

[AScha.3]

I tried edit...move to STM32CubeIDE .

And yes, in IDE 2.0 need to have CubeMx to edit the .ioc file. No more integrated in IDE .



[Mahmoud Ben Romdhane]

Hello @vernture ,

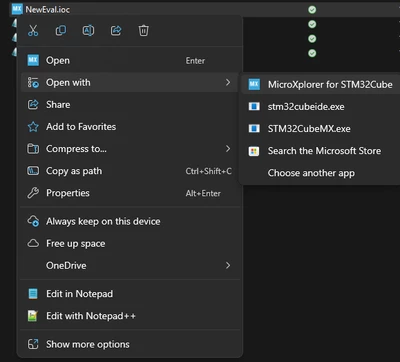

In order to open successfully the Ioc.File on STM32CubeIDE 2.0, you need to open it by default on the project folder with MicroXplorer for STM32Cube application.



Thanks.

Mahmoud

[Andrew Neil]

As the others have said, CubeMX is no longer integrated in CubeIDE v2.0.0:

https://community.st.com/t5/stm32cubeide-mcus/cubeide-2-0-does-not-open-ioc-files/m-p/857301/highlight/true#M39483

https://community.st.com/t5/stm32cubeide-mcus/how-to-enter-pinout-view/m-p/859592/highlight/true#M39708



See this post (by @TDK ) on how to start an external editor from within the IDE.

[vernture]

I suppose it's better to download STM32CubeMX and open the ioc file there.
I mostly work with STM32F103 MCUs, hence I should download STM32CubeF1 (STM32Cube MCU Package for STM32F1 series) here: https://www.st.com/en/embedded-software/stm32cubef1.html
right?

[Chinese-Communist-Party]

Thank you this helped out!
