STM32F413 USB oscillator error when USB enabled

[Adi1]

Hi All,

I have added recommended oscillator to a Nucleo - F413 board and made it to work on external oscillator by doing the recommended mods.

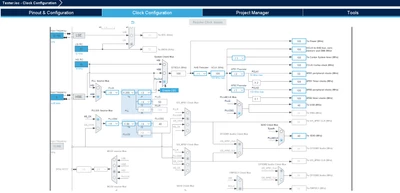

When, I Initialised the clock for USB, with the settings below, then HAL_RCC_OscConfig returns a timeout as HSE is never ready.



/* Wait till HSE is ready */

while (__HAL_RCC_GET_FLAG(RCC_FLAG_HSERDY) == RESET)

{

if ((HAL_GetTick() - tickstart) > HSE_TIMEOUT_VALUE)

{

return HAL_TIMEOUT;

}

}

}





Could someone please give me some insights into the problems.

[waclawek.jan]

> I have added recommended oscillator to a Nucleo - F413 board

What oscillator?

> by doing the recommended mods

What mods? How did you do them? Can you post a photo?

JW

[Adi1]

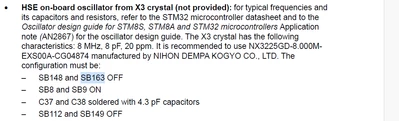

As per the Nucleo user manual, I made the modifications. The oscillator is a 8MHz connected to microcontroller.



,

[waclawek.jan]

That looks OK.

You have not set HSE BYPASS, have you? I don't know how is it set in CubeMX, I don't use CubeMX.

JW
