STM32G474 DMA with UART

[AM12]

Hello,

I'm using STM32G474QET6 with HSI (16Mhz).

When not using DMA - the UART is working.

With DMA I'm having 2 issues:

1. When sending 3 bytes, only 2 bytes sends.
2. DMA is not receiving anything (UART Rx) - CNDTR remains 3 and not data is written to the buffer (data.bytes[1]).

The 2nd issue is the main issue.



That is my UART init func:

	LL_USART_InitTypeDef usart_init_struct;

	USART1->CR1 &= ~USART_CR1_UE;	//	Disable USART 1.

	//	USART 1 clock enable.
	LL_APB2_GRP1_EnableClock(LL_APB2_GRP1_PERIPH_USART1);

	usart_init_struct.BaudRate 				= 19200;
	usart_init_struct.DataWidth 			= LL_USART_DATAWIDTH_8B;
	usart_init_struct.HardwareFlowControl 	= LL_USART_HWCONTROL_NONE;
	usart_init_struct.OverSampling 			= LL_USART_OVERSAMPLING_16;
	usart_init_struct.Parity 				= LL_USART_PARITY_EVEN;
	usart_init_struct.PrescalerValue 		= LL_USART_PRESCALER_DIV1;
	usart_init_struct.StopBits 				= LL_USART_STOPBITS_1;
	usart_init_struct.TransferDirection 	= LL_USART_DIRECTION_TX_RX;

	LL_USART_Init(USART1, &usart_init_struct);

	USART1->CR3 |= USART_CR3_OVRDIS;			//	Disable Overrun error.

	//	Config DMA1_Ch4 for USART1 Rx, & DMA1_Ch_5 for USART1 Tx.
	DmaConfig();

	NVIC_EnableIRQ(USART1_IRQn);

	USART1->CR1 |= USART_CR1_UE;				//	Enable USART 1.



And that is DmaConfig():

void DmaConfig(void)
{
	LL_DMA_InitTypeDef dma_init_struc;

	//	DMA 1 & DMAMUX clock enable.
	LL_AHB1_GRP1_EnableClock(LL_AHB1_GRP1_PERIPH_DMA1 | LL_AHB1_GRP1_PERIPH_DMAMUX1);

	/************************************
	 * Configuration for USART 1 Tx DMA *
	 ************************************/
	dma_init_struc.Direction 		= LL_DMA_DIRECTION_MEMORY_TO_PERIPH;
	dma_init_struc.Mode 	 		= LL_DMA_MODE_NORMAL;
	dma_init_struc.NbData 			= 0;
	dma_init_struc.PeriphRequest 	= LL_DMAMUX_REQ_USART1_TX;
	dma_init_struc.Priority 		= LL_DMA_PRIORITY_MEDIUM;

	//	Source.
	dma_init_struc.MemoryOrM2MDstAddress 	= 0;
	dma_init_struc.MemoryOrM2MDstDataSize 	= LL_DMA_MDATAALIGN_BYTE;
	dma_init_struc.MemoryOrM2MDstIncMode 	= LL_DMA_MEMORY_INCREMENT;

	//	Destination.
	dma_init_struc.PeriphOrM2MSrcAddress 	= (uint32_t)&USART1->TDR;
	dma_init_struc.PeriphOrM2MSrcDataSize 	= LL_DMA_PDATAALIGN_BYTE;
	dma_init_struc.PeriphOrM2MSrcIncMode 	= LL_DMA_PERIPH_NOINCREMENT;

	DMA1_Channel5->CCR &= ~DMA_CCR_EN;	//	DMA disable.
	LL_DMA_Init(DMA1, LL_DMA_CHANNEL_5, &dma_init_struc);

	/*
	 * Enable USART_Tx DMA Transmit request.
	 * Enable DMA transmit complete interrupt.
	 * Clear DMA1 Ch5 ALL interrupt flags.
	 */
	USART1->CR3 |= USART_CR3_DMAT;
	DMA1_Channel5->CCR |= DMA_CCR_TCIE;
	DMA1->IFCR = DMA_IFCR_CGIF5;

	NVIC_EnableIRQ(DMA1_Channel5_IRQn);


	/************************************
	 * Configuration for USART 1 Rx DMA *
	 ************************************/
	dma_init_struc.Direction 		= LL_DMA_DIRECTION_PERIPH_TO_MEMORY;
	dma_init_struc.Mode 	 		= LL_DMA_MODE_NORMAL;
	dma_init_struc.NbData 			= 3;
	dma_init_struc.PeriphRequest 	= LL_DMAMUX_REQ_USART1_RX;
	dma_init_struc.Priority 		= LL_DMA_PRIORITY_MEDIUM;

	//	Source.
	dma_init_struc.PeriphOrM2MSrcAddress 	= (uint32_t)&USART1->RDR;
	dma_init_struc.PeriphOrM2MSrcDataSize 	= LL_DMA_PDATAALIGN_BYTE;
	dma_init_struc.PeriphOrM2MSrcIncMode 	= LL_DMA_PERIPH_NOINCREMENT;

	//	Destination.
	dma_init_struc.MemoryOrM2MDstAddress 	= (uint32_t)&data.bytes[1];
	dma_init_struc.MemoryOrM2MDstDataSize 	= LL_DMA_MDATAALIGN_BYTE;
	dma_init_struc.MemoryOrM2MDstIncMode 	= LL_DMA_MEMORY_INCREMENT;

	DMA1_Channel1->CCR &= ~DMA_CCR_EN;	//	DMA disable.
	LL_DMA_Init(DMA1, LL_DMA_CHANNEL_4, &dma_init_struc);

	/*
	 * Enable USART_Rx DMA Receiver request.
	 * Enable DMA transmit complete interrupt.
	 * Clear DMA1 Ch4 ALL interrupt flags.
	 */
	USART1->CR3 |= USART_CR3_DMAR;
	DMA1_Channel4->CCR |= DMA_CCR_TCIE;
	DMA1->IFCR = DMA_IFCR_CGIF4;
//
	NVIC_EnableIRQ(DMA1_Channel4_IRQn);

	DMA1_Channel4->CCR |= DMA_CCR_EN;	//	DMA enable.
}



[Mahmoud Ben Romdhane]

Hello @AM12 ,



Le me thank you for posting and welcome to the ST Community.

For more investigation, could you provide your Ioc.File.



Thanks.

Mahmoud

[AM12]

Hey,

I'm not using IOC for configuration.

[waclawek.jan]

Read out and check/post content of UART and relevant DMA and DMAMUX registers.

> When sending 3 bytes, only 2 bytes sends.

How do you send those 3 bytes?

JW

[AM12]

Registers value, after config, before sending/receiving anything at all.

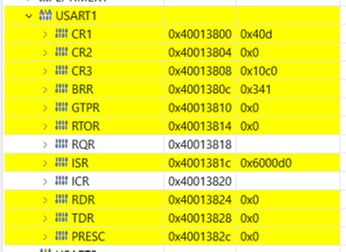

USART1:

DMAMUX:

All other regs under DMAMUX are 0x0.

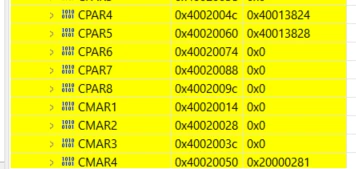

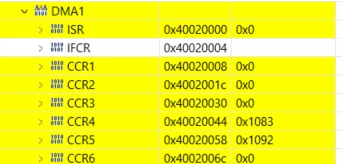

DMA1:

All other regs under DMA1 are 0x0.

CMAR4 is indeed the address of my rx_buffer.



2 bytes instead of 3:

dataxxx is global.

uint8_t dataxx[3] = {'A', 'B', 'C'};

UsartSend(dataxx, 3);

void UsartSend(uint8_t *data_buffer ,uint8_t len)
{
	//	Set length and enable DMA1 channel 5 (USART1 Tx).
	DMA1_Channel5->CCR 	&= ~DMA_CCR_EN;
	DMA1_Channel5->CMAR = (uint32_t)data_buffer;
	DMA1_Channel5->CNDTR = len;
	DMA1_Channel5->CCR 	|= DMA_CCR_EN;
}



[waclawek.jan]

Registers look good at this point, as well as the Tx code.

You may want to have a look at them and compare after UartSend.

How do you observe the Tx'd data, oscilloscop/logic analyzer, or something else? What's the source for Rx, is it a loopback from Tx?

Isn't there some other code which may interfere, e.g. some RTOS?

What hardware is this, a "known good" board like Nucleo, or your own? In the latter case, can't there be a problem in the hardware, e.g. the Tx pin getting active resulting in power supply dip and subsequent reset?

JW

[AM12]

Thanks for the replay.



• I'm not using OS.
• My own board.
• I'm using Tera Term & Wire Shark to observe the data.



When sending w/o DMA - sending ok.

The problem is only when using DMA.

Same for receiving.

Dummy sending:

	USART1->TDR = dataxx[0];
	LL_mDelay(1000);
	USART1->TDR = dataxx[1];
	LL_mDelay(1000);
	USART1->TDR = dataxx[2];
	LL_mDelay(1000);



[waclawek.jan]

What happens if you try to transmit more than 3 bytes - say, the whole alphabet?

JW



[AM12]

Working! What i did?



In all tests below, I was sending 'A' (0x41) at 115,200

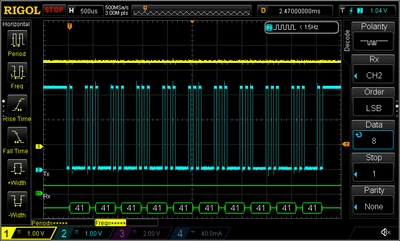

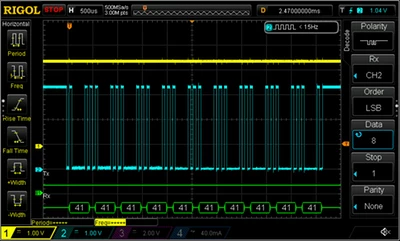

Sending 8N1 - everything works fine:

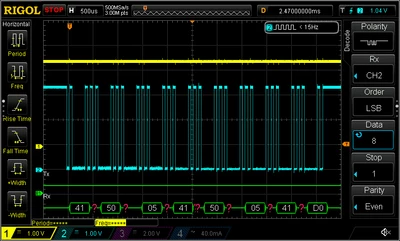

Sending 8E1 - NOT working:

Data is indeed corrupted.

I changed the Scope settings to None and the data was parsed in the scope OK

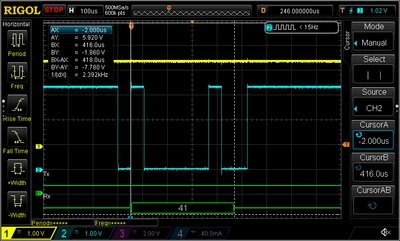

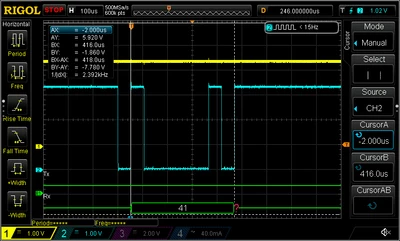

So I sent only 1 byte:

Sending 1E8

Both regular sending & DMA received wrong - Parity is missing!



So I changed data length to 9bits - It's working!





[waclawek.jan]

In the STM32 UART, contrary to the usual convention, parity bit counts towards the total bit number.

In other words, for 8E1, you need to set 9 bits in the STM32 UART.

And yes, I have forgotten about this, too...

JW

[AM12]

Yep, completely understood, and yet we all expect that the parity will be added by "itself".
