STM32H563 & FreeRTOS

[DiBosco]

We've designed a board with an H563 on it. Before I started the PCB layout I checked that FreeRTOS was supported for this device and saw it was.

However, now I come to create a project in the Cube IDE it doesn't seem quite so straightforward.

It [the H563 family] wasn't supported in version 1.9 of the IDE so I upgraded to 1.16.

I'm concerned though that FreeRTOS no longer seems to be automatically in Cube's set up ands you seem to have to install this X-CUBE-FREERTOS  add on which seems to suggest though that TCP/IP is not supported. Is that correct?

Also once you've downloaded this add on, how do you actually install it into Cube?

If we need to run FreeRTOS with TCP/IP support is the H563 the wrong processor to be using?

Thanks! :)





[AScha.3]

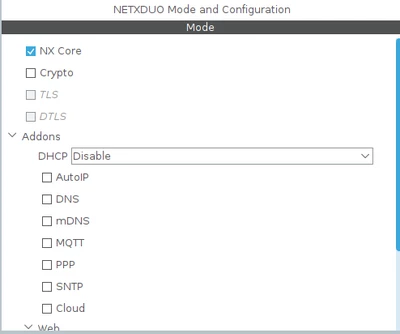

Now on H563 you have Azure RTOS , with can have FAT , sd-card, USB and network...

But if want freertos, ...tcp/ip - dont know, maybe look here:

https://github.com/FreeRTOS/FreeRTOS-Plus-TCP

https://www.freertos.org/FreeRTOS-Plus/FreeRTOS_Plus_TCP/index.html





[Peter BENSCH]

@DiBosco the X-CUBE packages can be installed via the Package Manager:

Help > Manage Embedded Software Packages, tab STMicroelectronics

where you can then select the desired version.

Hope that helps?

Regards
/Peter

[Jatkins2431]

I had the same issue. I was able to install it by going to middleware and clicking to install XCubeFreeRTOS. To enable it afterward, I clicked on it again and was brought to the Software Packs Component Selector. From there, you can click to expand everything under XCubeFreeRTOS (you have to click a few times), then select your desired TrustZone settings and which Heap you want to use. When that is done you can configure FreeRTOS
