STM32H747I-DISCO unable to flash in Ubuntu 22.04.5 LTS

[jo512]

Hi Support

I have experience in STM32 with Zephyr but I am trying out AMP for the first time.

So I am trying out OpenAMP example from STM32CubeIDE. I can compile the example but cannot flash the same.

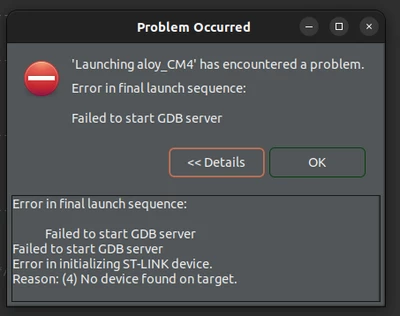

I have the following error

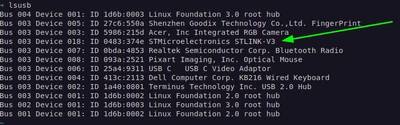

The ST-Link device is present as shown below



I have tried other boards like NUCLEO-G431RE with some simple UART example and work well.

I have problems only with AMP board, I am not able to flash M4 and M7 core.



My dev environment

Ubuntu 22.04 and STM32CubeIDE ver1.1.8.1



Could anyone please help me understand the same?





[mƎALLEm]

Hello,

---

@jo512 wrote:

Ubuntu 22.04 and STM32CubeIDE ver1.1.8.1

---

You mean 1.18.1?

Did you test another simple project apart from OpenAMP? Try the GPIO example.



[jo512]

None of the example works for this particular board. I cannot flash into M4 or M7

[mƎALLEm]

What part of the project you cannot flash? CM4 or CM7?

[mƎALLEm]

You didn't answer my question. Which part of project is not uploaded? CM4? CM7 or both?

You have two projects inside the example.

[jo512]

I cannot upload both

[mƎALLEm]

Ok did you try to connect to the board with the CubeProgrammer?

Try this please ..

[Andrew Neil]

---

@jo512 wrote:

The ST-Link device is present as shown below

---

So the problem is the connection between the ST-Link and the Target.

Has this board ever worked?

How to solve connection errors when connecting and programming the STM32 target board.

How to solve debugger connection issues

[jo512]

This Board has also not worked with CubeProgrammer in Linux. I will try on Windows and will update again

[mƎALLEm]

---

@jo512 wrote:

This Board has also not worked with CubeProgrammer in Linux. I will try on Windows and will update again

---

Yes do it please ..

[jo512]

Hi Andrew,

This is a new board right out of the box. And has never worked in my hands

Regards

Jo



[mƎALLEm]

You need to ensure the connection step with CubeProgrammer.

You need to ensure the connection to each of the Cores CM4 and CM7:

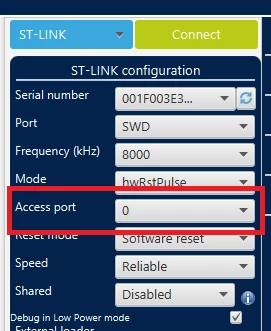

To connect to CM7, you need to set the access port to 0:

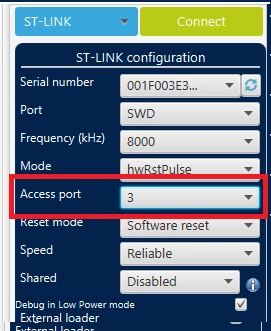

To connect to CM4, you need to set the access port to 3:

Ensure also all the jumpers are set correctly especially JP6: it should be set to ST-LINK option.

If you succeed to connect with CubeProgrammer, try to update the ST-LINK firmware with CubeProgrammer:

Then,
