STM32U585 USB is OK with Keil; not working with CubeIDE or makefile

[CeSium]

Hi! I have a board based on STM32U585CIU, and I'm trying to enable a USB CDC on it. The problem is: when I generate a project in CubeMX for MDK-ARM, the code I've attached works fine, USB CDC device is being recognized by PC, and I can see messages via COM port. However, once I generate it for CubeIDE or Makefile, it just goes to hard fault in MX_USBX_Device_Init. Considering it works in Keil uVision, seems like hardware is completely okay, so there is something in the difference between gcc-arm and arm compiler.

[Andrew Neil]

---

@CeSium wrote:

Considering it works in Keil uVision, seems like hardware is completely okay, so there is something in the difference between gcc-arm and arm compiler.

---

Seems a reasonable hypothesis.

Have you tried debugging the Hard Fault ?

[CeSium]

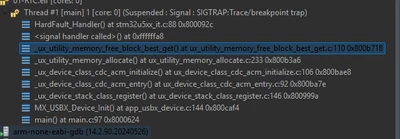

Yes, I've tried attaching a debugger, and that's what I'm getting:

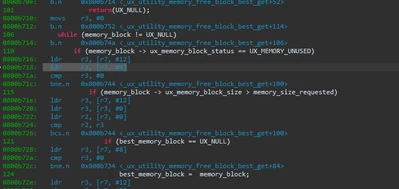

The Hard Fault occurs in ux_utility_memory_free_block_best_get.c in _ux_utility_memory_free_block_best_get function (line 110) while getting a value from memory_block -> ux_memory_block_status. According to debugger, memory_block is 0x1. I've also got the PC address: 0x800bae8, which shows this disassembly



And the hard fault reason is:



[Pavel A.]

The difference can be also in the Keil MDK runtime library.



[CeSium]

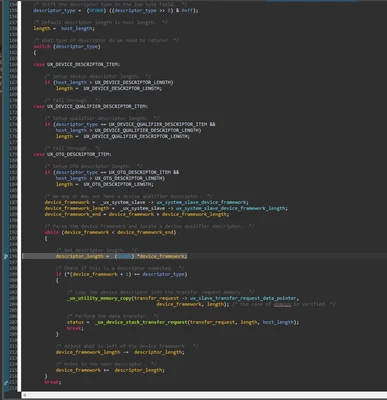

UPD. I've also tried updating Firmware Package Version to STM32Cube FW_U5 V1.8.0. Now, I'm not getting the hard fault during MX_USBX_Device_Init. However, now I'm stuck in an endless loop in ux_device_stack_descriptor_send.c
