Trouble Using RTOS Aware Debugging with ThreadX

[zmasmoudi]

I'm having trouble enabling RTOS proxy for debugging. I followed the following tutorial:
https://www.youtube.com/watch?v=iRaiMvYZ08o
I get the following error:

Error in final launch sequence:

Failed to execute MI command:
target remote localhost:60000

Error message from debugger back end:
Remote replied unexpectedly to 'vMustReplyEmpty': timeout
Failed to execute MI command:
target remote localhost:60000

Error message from debugger back end:
Remote replied unexpectedly to 'vMustReplyEmpty': timeout
Remote replied unexpectedly to 'vMustReplyEmpty': timeout



STM32CubeIDE v2.0.0

STLink connected with SWCLK and SWDIO with up to date firmware

STM32H725 custom board

Tested on new project generated using CubeMX

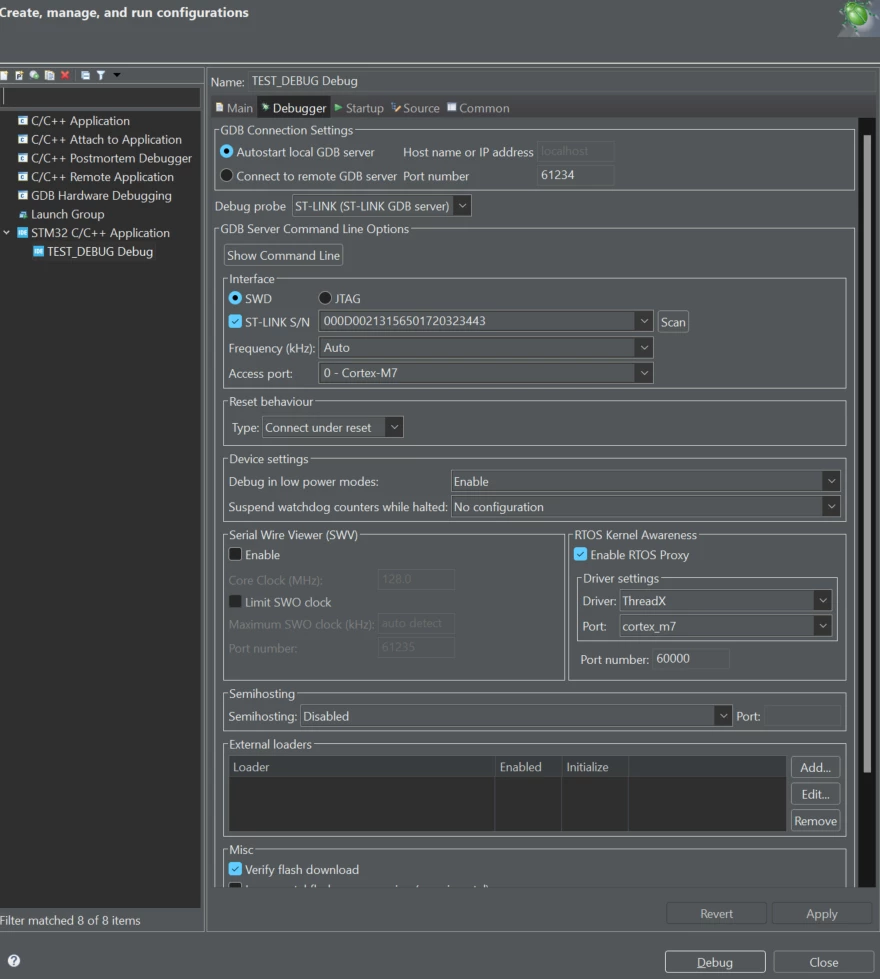

Here are my debug configuration settings:

Please let me know if you require any additional information.

Thanks in advance!

[Mahmoud Ben Romdhane]

Hello @zmasmoudi

Let me thank you for posting and welcome to the ST Community.

For more investigation, could you please provide your Ioc.File.

Thanks.

Mahmoud



[zmasmoudi]

Hello Mahmoud

Thanks for the welcome and the quick response!

I've attached the .ioc file for a minimally reproducible example. I am getting the error with the auto-generated code without any modification (except clock init).

[Mahmoud Ben Romdhane]

Hello @zmasmoudi

I reproduced the debug session with Nucleo-H723ZG and it works correctly.

I recommend connecting your custom board with STM32CubeProgrammer and erasing the memory, then restarting the debug session.

Please find in attachment my debug configuration.

Thanks.

Mahmoud
