Unable to use SWV Data Trace Timeline Graph

[ozzdemir]

Hello,

I want to use SWV Data Trace Timeline Graph but when I try to open "Configure trace" option, nothing happens, not a single window is being opened etc. Is it some kind of bug, does it have a solution? Thanks in advance.

My IDE and other information are as follows:

STM32CubeIDE

Version: 1.0.2

Build: 3566_20190716-0927 (UTC)

OS: Ubuntu 16.04

Board: Nucleo-F401RE

--

Oguz

[Markus GIRDLAND]

Are you in a live debug session when you try to configure the trace or have you just switched to the debug perspective?

Have you activated SWV in the debug configuration?

[ozzdemir]

I was in a live debug session, I was also observing the live expression of the same variable I was trying to plot. I activated SWV in the debug configuration but then "Configure trace" option became deactivated so I reverted it back.

[Markus GIRDLAND]

Does this happen with any project you're creating? Do you have another board to test it on?

I haven't been able to recreate the problem myself but I'll give it a try on the Linux computer to see if it's OS specific later today.

[ozzdemir]

Yesterday, I tried again to activate SWV and was able to open the window and configure this time, I don't know what changed from then.

Thanks for your effort.

[benjaminu]

It is not OS-dependent. In any case at least some feedback to the user is required even if these settings require an active debug session.

[Bitschubse]

Hi,

is there any solution to this problem?

I tried to configure the trace in every SWV View. But the window does not open. It doesn't matter if I am in an running debug session, a halted session or if I just opened the debug perspective. There is no reaction if I click on this icon.

Please help.

Best regards

Alex



[rbclima]

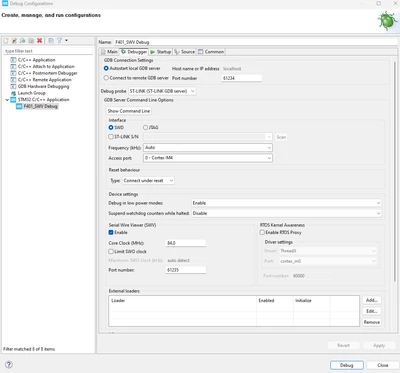

After a lot of struggling, I figured it out that you need to hit the down arrow of debug button (bug), debug configuration, debugger and ENABLE SWV checkbox!!!!! It solved the issue for me!
