direct mode chang snapshot mode error

  • March 12, 2023
  • 2 replies
  • 878 views

hello everyone,

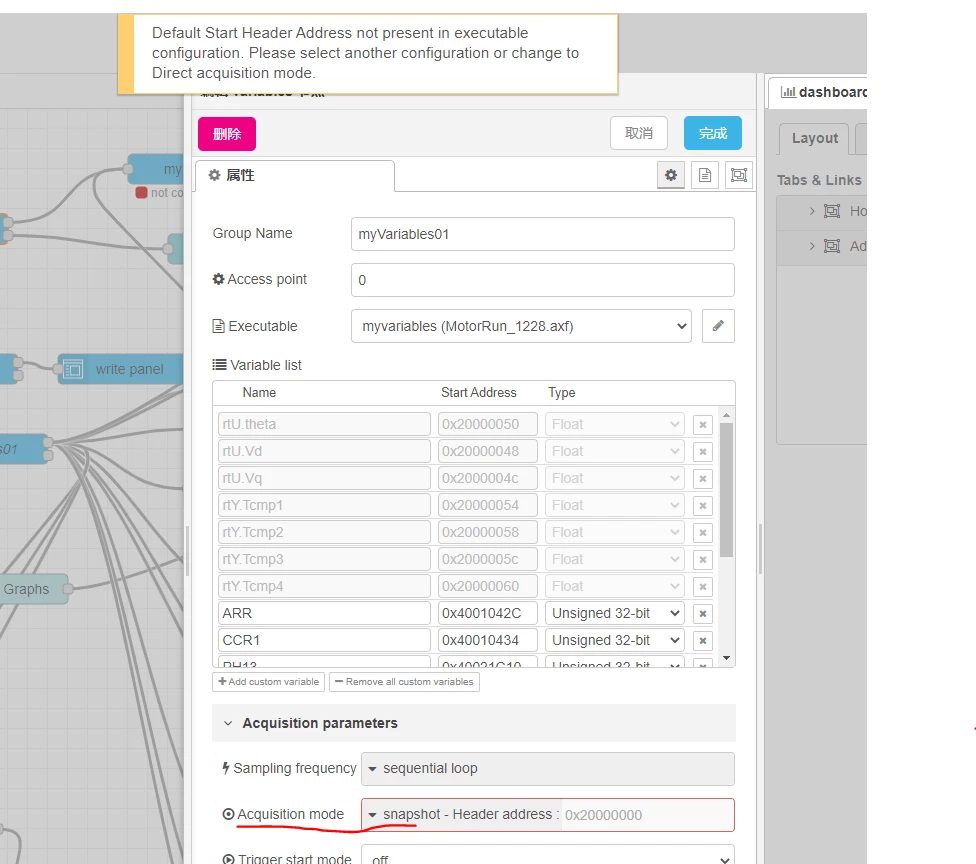

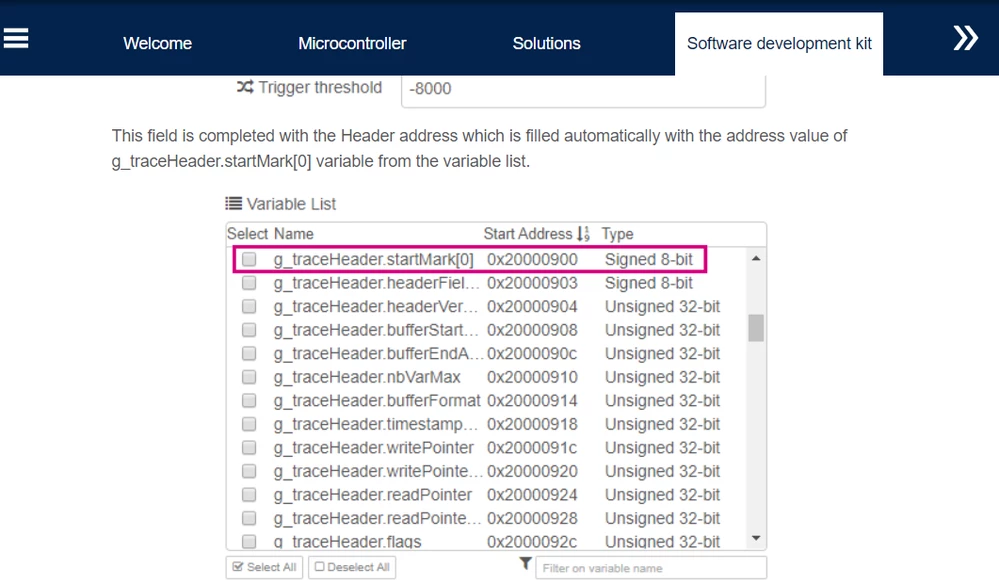

I switch direct mode to snap mode,and add relevant C and H files.But Acquisition mode can't change snap mode. Variable list can't find "g_traceHeader"

which may be my operation error ?

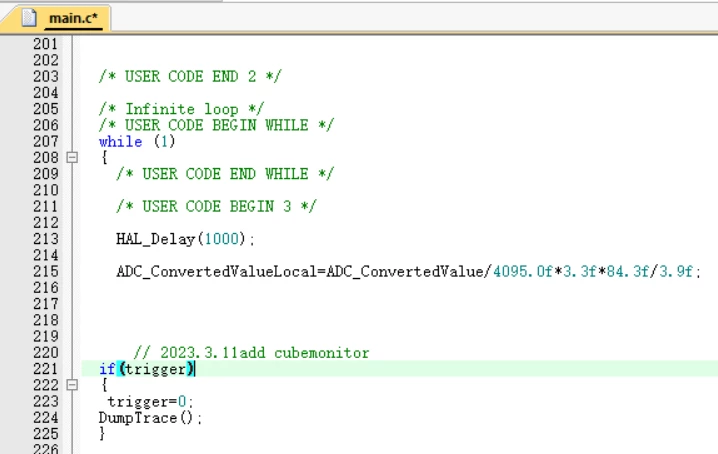

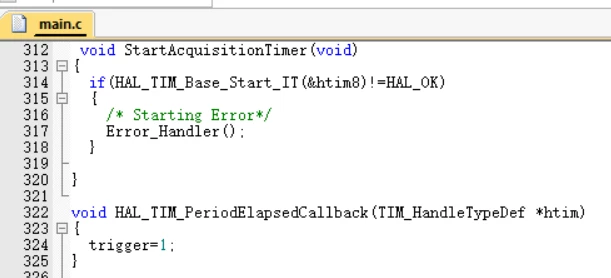

0693W00000aIk4JQAS.png0693W00000aIk7SQAS.png0693W00000aIk4TQAS.png0693W00000aIkAlQAK.png0693W00000aIkAqQAK.png0693W00000aIkB0QAK.png

This topic has been closed for replies.

2 replies

Richard.Chvr
Richard.Chvr
Technical Moderator
March 30, 2023

Hello @gzubi.1​

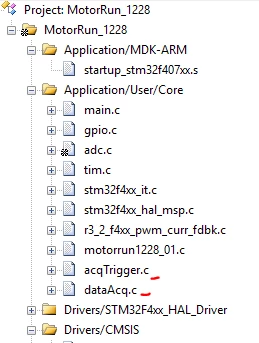

I've seen you've disabled dataAcq.h file, this file is required for snapshot.

Can you please try to include this file and activate USER_TRIGGER option and let us know the status.

Hope it helps

Regards

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
Richard.Chvr
Richard.Chvr
Technical Moderator
March 30, 2023

Oups I was thinking Python and not C, # is not a comment....

However, can you check USER_TRIGGER option status is activated.

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
