Is there a good way to view structured data? I have a global variable of structure data type, I was not able to view any fields of this struct except of specifying memory address directly.

..

This topic has been closed for replies.

Best answer by Richard.Chvr

No update since a while, closing the post.

Visitor II

Dear KChiz,

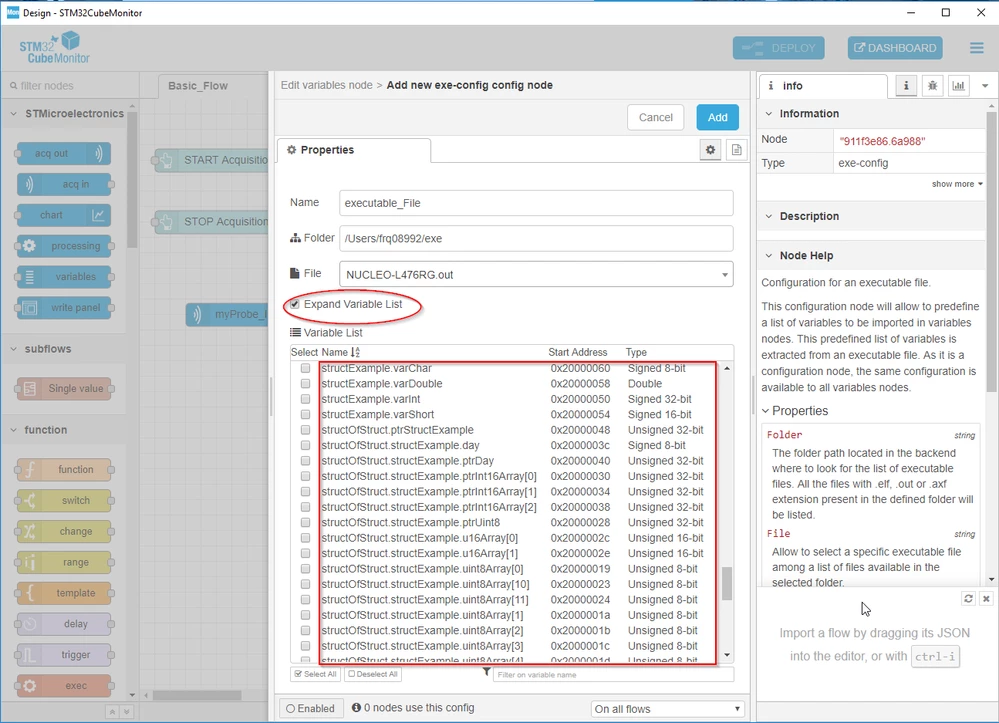

Did you check the "Expand Variable List" checkbox in the "exe-config" node panel (as shown in attached picture)?

It should normally show the content of data structure and the arrays.

Best Regards,

Thierry

Associate II

OK, I got it. I'm using C++. For some reason this feature works only for 'structs' but not for classes.

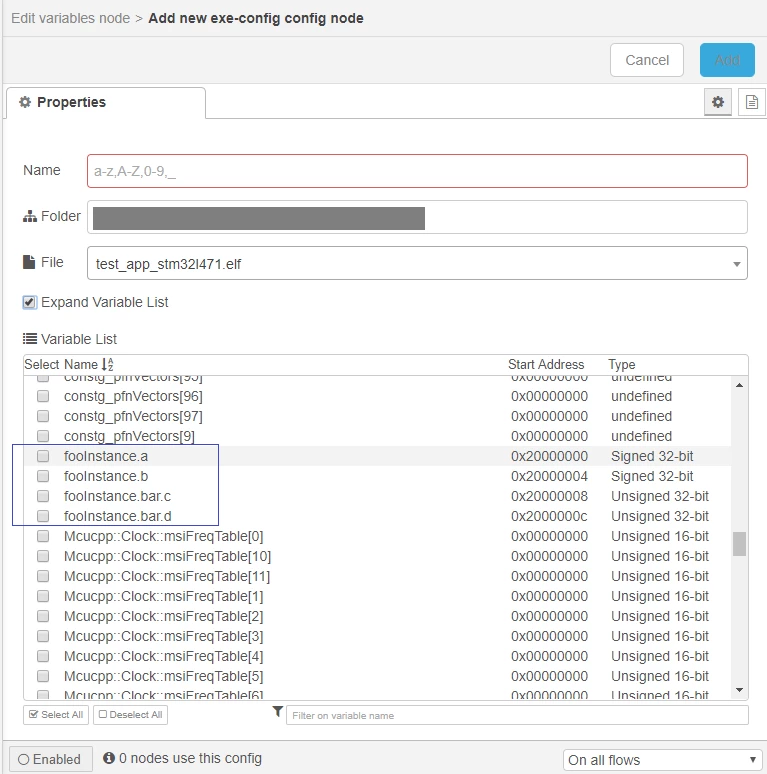

Same code compiled using arm-none-eabi-gcc 9.2.1 i C++ mode. If I use 'struct' keyword.

It looks OK.

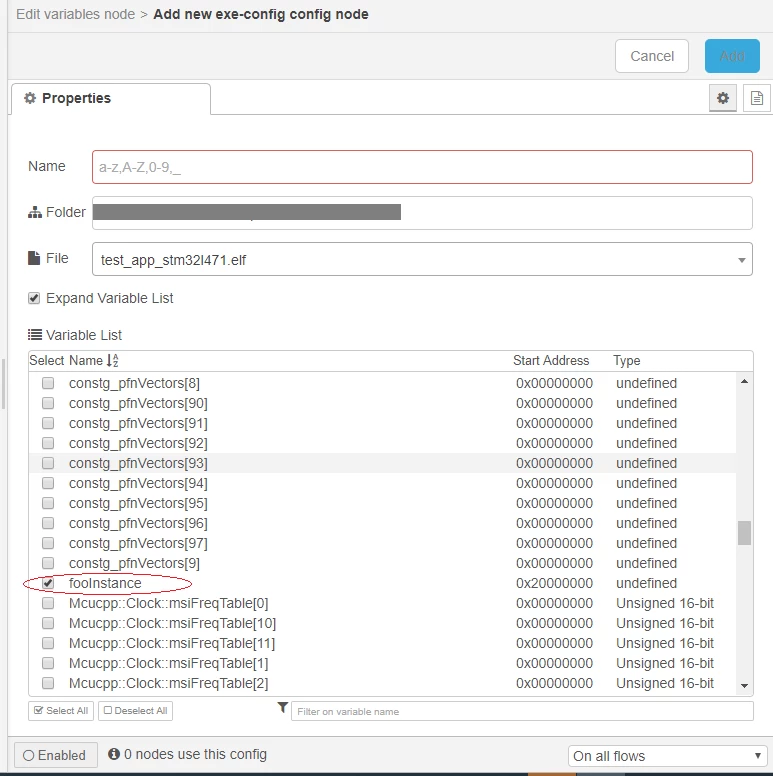

However is I use 'class':

No fields of class are visible:

So this question should be re-classified as "Expand variables does not work with classes".

Visitor II

Dear Kchiz.1,

The C++ classes are actually not supported by our executable parser. We will look at this support in a futur release.

Technical Moderator

No update since a while, closing the post.
