Is there a way in MX2 to enable/disable timer freezing during debugging?

[gil_dobjanschi]

Hello,



Is there a setting in MX2 to enable/disable timer freezing during debugging? If not, what HAL APIs can be used for this purpose?



Thank you,

Gil

[STackPointer64]

Hello,

It is not available in MX2. It needs to be configured manually in the debug register, DBGMCU_APB1LFZR, in particular. I invite you to check the reference manual, page 2543.

Best regards,

[gil_dobjanschi]

Thank you @STackPointer64,

Much appreciated!

-Gil

[mƎALLEm]

Hello,

You need to use DBGMCU block and call call __HAL_DBGMCU_FREEZE_TIMx() to freeze the timer during the debug.

If you re using TIM1 so call  __HAL_DBGMCU_FREEZE_TIM1().

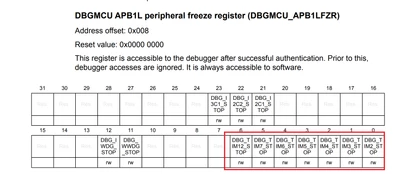

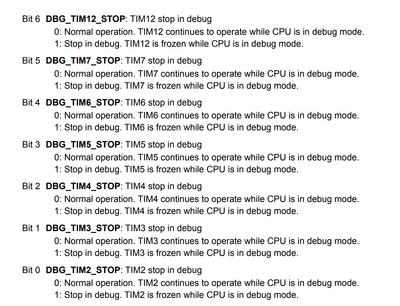

DBGMCU_APBxy register:

Edit:

For HAL2 use HAL_DBGMCU_TIMx_Freeze() where x is the timer number.
