BOR level description is confusing

[FArdi.1]

Using latest STM32CubeProgrammer v2.15.0

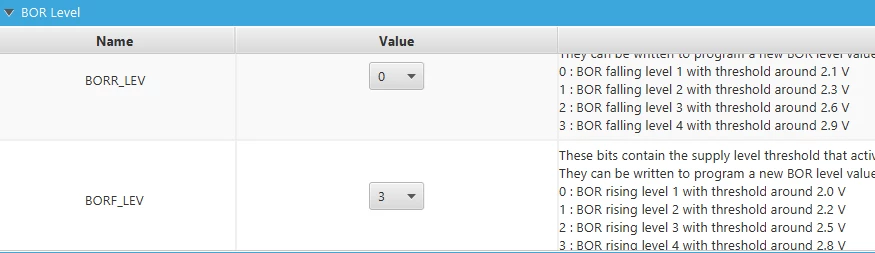

Register name and description don't match (rising register, but falling description, and vice versa).

Which one is correct?



[TDK]

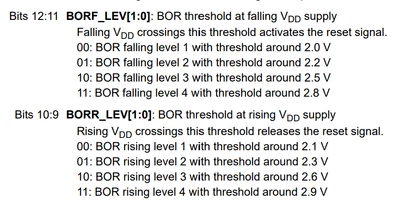

Rising voltage is higher than falling voltage. Description on the left is correct.

The reference manual is the best reference source.





See this post, STM32CubeProgrammer might be writing them to the wrong locations anyway. Unclear.

https://community.st.com/t5/stm32cubeprogrammer-mcus/stm32cubeprogrammer-2-10-0-released/m-p/134440/highlight/true#M1675



[FArdi.1]

@TDK

Thanks for the answer & the link to old issue.

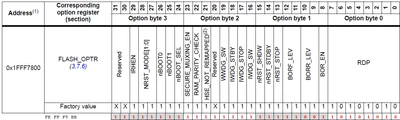

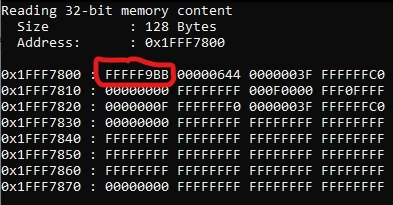

At least for now the address location is correct for -ob BOR_EN=0x1 BORF_LEV=0x3 BORR_LEV=0x0

Only descriptions inside GUI need to be swapped.





[TDK]

Thanks for figuring that out and posting the result.

[FArdi.1]

Description is unchanged with new v2.16.0. Still wrong, not match with Reference Manual.

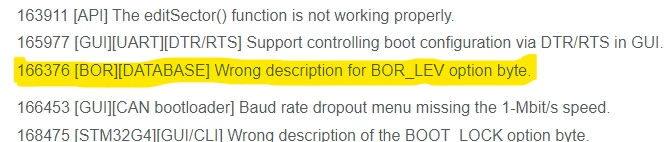

But the release history said otherwise. See attached.

[KDJEM.1]

Hello @FArdi.1,



Thank you for bringing this issue to our attention.

I reported internally.

Internal ticket number: 205883 (This is an internal tracking number and is not accessible or usable by customers).



Thank you.

Kaouthar

[KDJEM.1]

Hello @FArdi.1 ;



The issue is fixed in STM32CubeProgrammer 2.20.0 version.



Thank you.

Kaouthar
