CubeProgrammer downloading error STM32F303

  • March 10, 2023
  • 1 reply
  • 1115 views

I currently program a STM32F303 with the app STMFlashLoader Demo, using a USB-RS232 device. I want to replace that app with CubeProgrammer, but the app is sending an error. I already checked my FW, but it is OK.

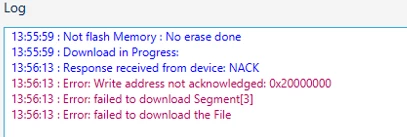

So, I want to know if you can help me to fix this error without affecting the programming of the device.0693W00000aIhb0QAC.png

This topic has been closed for replies.
Best answer by Tesla DeLorean

0x20000000 is RAM

Build your project for 0x08000000 that's where the FLASH is situated

The object file shouldn't be describing RAM, it's the responsibility of the startup code to initialize/copy initial content in RAM

1 reply

Tesla DeLorean
Tesla DeLoreanBest answer
Guru
March 10, 2023

0x20000000 is RAM

Build your project for 0x08000000 that's where the FLASH is situated

The object file shouldn't be describing RAM, it's the responsibility of the startup code to initialize/copy initial content in RAM
