CubeProgrammer + STLINKV3 supporting FDCAN System bootloader?

  • January 21, 2025
  • 1 reply
  • 681 views


Is FDCAN Systembootloader described in AN5405

supported by cubeProgrammer or the CLI tools?

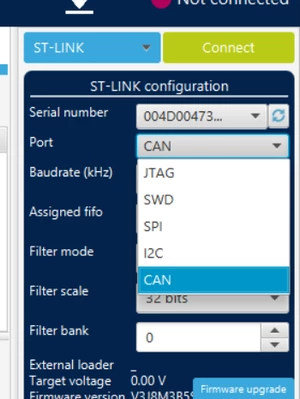

Because i only see the CAN (classic) option



    1 reply

    Andrew Neil
    Andrew NeilBest answer
    Super User
    January 21, 2025

    Looks like a NO:  the ST-Link V3 does not support FDCAN - only CAN:

    https://community.st.com/t5/stm32cubeprogrammer-mcus/stlink-v3-canbus-bootloader-over-stm32cubeprogrammer-problem/m-p/612597/highlight/true#M5538

    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
      Javier1
      Javier1Author
      Principal
      January 21, 2025

      Im a bit confused howcome all examples for Openbootloader are supporting FDCAN and no CAN, i guess ill need to add CAN interface myself
