Discrepancy between STM32CubeProgrammer and reference manual

[Maaz1]

Hi all

For the STM32U5, the reference manual shows the GCCFG register as

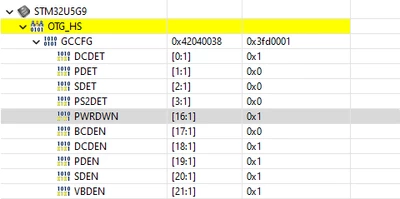

but STM32CUBEIDE shows

bit 16(and a lot of other bits) are differing. Is this an error and if so which is the right one



[Maaz1]

STM32U5 series Arm<Sup>®</Sup>-based 32-bit MCUs - Reference manual

[KDJEM.1]

Hello @Maaz1 ;



As mentioned in RM0456 the STM32U575/585 support only the USB on-the-go full-speed (OTG_FS) which the OTG general core configuration register (OTG_GCCFG) have these bits filed:

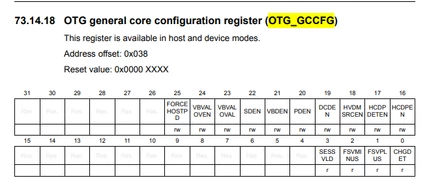

And the STM32U59x/5Ax/5Fx/5Gx support only USB on-the-go high-speed (OTG_HS) which OTG general core configuration register (OTG_GCCFG) have these bits filed:



If you using the STM32U575 or STM32U585, you need to refer to Section 72.15.15 not 73.14.18 in reference manual.

Which STM32U5 are you using?

Thank you.

Kaouthar



[Maaz1]

Hi

I am using STM32U5G9J-DK2

[KDJEM.1]

Hello @Maaz1 ;



Thank you for bringing this issue to our attention.

I reported internally for verification and correction.

Internal ticket number: 215484 (This is an internal tracking number and is not accessible or usable by customers).



Thank you.

Kaouthar

[Maaz1]

Hi

Another discrepancy to support the fact that the reference manual might be wrong



STM32CubeIDE seems to support the stm32CubeProgrammer and not the reference manual.



Thank you for the ticket, and I hope to hear from you soon since this is of interest to me as well.

[KDJEM.1]

Hello @Maaz1 ,



The reference manual is correct, the issue is related to svd file shared in this link.

To clarify the issue, the STM32CubeIDE and STM32CubeProgrammer toolchains used the same svd file register.



I will let you know when the issue is solved.



Thank you.

Kaouthar

[Maaz1]

Hi, thanks for getting back to me.



That's such a huge error lol, I'm glad I posted it here and followed reference manual instead of chasing ghosts. Thank you for replying, really put me at ease :)

[KDJEM.1]

Hello @Maaz1 ;



Thank you for your contribution in STCommunity.

To give better visibility on the answered topics, please click on Accept as Solution on the reply which answered your question.



Thank you.

Kaouthar

[Maaz1]

Hi, are there any updates?

[KDJEM.1]

Hello @Maaz1 ;



I will keep you up to date until the issue is solved.

Thanks



Kaouthar
