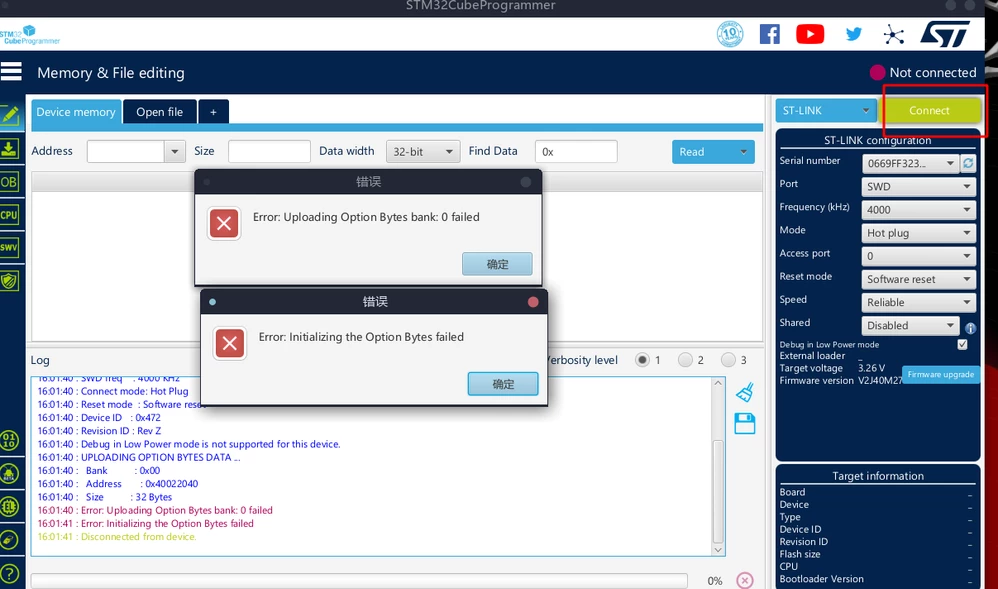

How can I solve the deadlock caused by the STM32L5（NUCLEO-L552ZE-Q） boot_lock and rdp level configurations?

  • April 3, 2023
  • 1 reply
  • 818 views


This topic has been closed for replies.

1 reply

Aziz BRIGUI
Aziz BRIGUI
Technical Moderator
April 13, 2023

Hello @hhell.1​,

First could you try connecting under reset. If that doesn't work try pulling BOOT0 high (connect CN11 pin 5 to 7), unplug/plug the board to your PC and try connecting in hotplug mode. If you're able to connect, follow the steps detailed in AN5347 section 9.1.2 (page 21) to do a TZEN/RDP regression with a boot from RSS.

Let me know if you find this helpful.

Aziz

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
