How to fix: Error: Mass erase operation failed. / verify flash protection

[Rena Z.]

After evaluating/flashing the SBSFU examples on the NUCLEO-G071RB evalboard it's not possible to erase full flash anymore. I get the error below. How to set factory defaults that erasing is possible again?

STM32_Programmer_CLI.exe -c port=SWD -e all

   -------------------------------------------------------------------

            STM32CubeProgrammer v2.12.0

   -------------------------------------------------------------------

ST-LINK SN : xxxxxxxxxxxxxxxxxxxxxxx

ST-LINK FW : V2J40M27

Board    : NUCLEO-G071RB

Voltage   : 3.21V

SWD freq  : 4000 KHz

Connect mode: Normal

Reset mode : Software reset

Device ID  : 0x460

Revision ID : Rev B

Device name : STM32G07x/STM32G08x

Flash size : 128 KBytes

Device type : MCU

Device CPU : Cortex-M0+

BL Version : 0xB2

Debug in Low Power mode enabled

Mass erase ...

Error: Mass erase operation failed.

Please verify flash protection

STM32_Programmer_CLI.exe -c port=SWD -ob displ

   -------------------------------------------------------------------

            STM32CubeProgrammer v2.12.0

   -------------------------------------------------------------------

ST-LINK SN : xxxxxxxxxxxxxxxxxxxxx

ST-LINK FW : V2J40M27

Board    : NUCLEO-G071RB

Voltage   : 3.21V

SWD freq  : 4000 KHz

Connect mode: Normal

Reset mode : Software reset

Device ID  : 0x460

Revision ID : Rev B

Device name : STM32G07x/STM32G08x

Flash size : 128 KBytes

Device type : MCU

Device CPU : Cortex-M0+

BL Version : 0xB2

Debug in Low Power mode enabled

UPLOADING OPTION BYTES DATA ...

 Bank     : 0x00

 Address    : 0x40022020

 Size     : 112 Bytes

██████████████████████████████████████████████████ 100%

OPTION BYTES BANK: 0

  Read Out Protection:

   RDP     : 0xAA (Level 0, no protection)

  BOR Level:

   BOR_EN    : 0x0 (Configurable brown out reset disabled, power-on reset defined by POR/PDR levels)

   BORR_LEV   : 0x3 (BOR rising level 4 with threshold around 2.9 V)

   BORF_LEV   : 0x3 (BOR falling level 4 with threshold around 2.8 V)

  User Configuration:

   nRST_STOP  : 0x1 (No reset generated when entering Stop mode)

   nRST_STDBY  : 0x1 (No reset generated when entering Standby mode)

   nRST_SHDW  : 0x1 (No reset generated when entering the Shutdown mode)

   IWDG_SW   : 0x1 (Software independant watchdog)

   IWDG_STOP  : 0x1 (IWDG counter active in stop mode)

   IWDG_STDBY  : 0x1 (IWDG counter active in standby mode)

   WWDG_SW   : 0x1 (Software window watchdog)

   RAM_PARITY_CHECK: 0x1 (SRAM parity check disable)

   nBOOT_SEL  : 0x1 (BOOT0 signal is defined by nBOOT0 option bit)

   nBOOT1    : 0x1 (Boot from Flash if BOOT0 = 0, otherwise system memory)

   nBOOT0    : 0x1 (nBOOT0=1)

   NRST_MODE  : 0x3 (Bidirectional reset: NRST pin configured in reset input/output mode (legacy mode))

   IRHEN    : 0x1 (Internal resets drives NRST pin low until it is seen as low level)

  PCROP Protection:

   PCROP1A_STRT : 0x0 (0x8000000)

   PCROP1A_END : 0x0 (0x8000200)

   PCROP_RDP  : 0x1 (PCROP zone is erased when RDP is decreased)

   PCROP1B_STRT : 0xFF (0x801FE00)

   PCROP1B_END : 0x0 (0x8000200)

  Write Protection:

   WRP1A_STRT  : 0x0 (0x8000000)

   WRP1A_END  : 0x0 (0x8000000)

   WRP1B_STRT  : 0x3F (0x801F800)

   WRP1B_END  : 0x0 (0x8000000)

  FLASH security:

   BOOT_LOCK  : 0x0 (Boot based on the pad/option bit configuration)

   SEC_SIZE   : 0x0 (0x8000000)

[GwenoleB]

Hello @Rena Z.​,

I'm seeing some PCROP and WRP are set. When a WRP or PCROP is set, mass erase is forbidden.

WRP or PCROP are enable when START_ADDRESS <= STOP_ADDRESS

 PCROP1A_STRT : 0x0 (0x8000000)

 PCROP1A_END : 0x0 (0x8000200)

WRP1A_STRT  : 0x0 (0x8000000)

WRP1A_END  : 0x0 (0x8000000)

First, disable PCROP and WRP protection, then proceed to the mass erase.

Let me know if it works.

Best Regards,

Gwénolé

[Rena Z.]

seems that modifying PCROP1A_STRT does not work:

STM32_Programmer_CLI.exe -c port=SWD -ob PCROP1A_STRT=0x3F -ob displ

   -------------------------------------------------------------------

            STM32CubeProgrammer v2.12.0

   -------------------------------------------------------------------

ST-LINK SN : xxxxxxxxxxxxxxxxxxxxx

ST-LINK FW : V2J40M27

Board    : NUCLEO-G071RB

Voltage   : 3.22V

SWD freq  : 4000 KHz

Connect mode: Normal

Reset mode : Software reset

Device ID  : 0x460

Revision ID : Rev B

Device name : STM32G07x/STM32G08x

Flash size : 128 KBytes

Device type : MCU

Device CPU : Cortex-M0+

BL Version : 0xB2

Debug in Low Power mode enabled

UPLOADING OPTION BYTES DATA ...

 Bank     : 0x00

 Address    : 0x40022020

 Size     : 112 Bytes

██████████████████████████████████████████████████ 100%

PROGRAMMING OPTION BYTES AREA ...

 Bank     : 0x00

 Address    : 0x40022020

 Size     : 112 Bytes

██████████████████████████████████████████████████ 100%

Reconnecting...

 DBG enabled successfully

Reconnected !

UPLOADING OPTION BYTES DATA ...

 Bank     : 0x00

 Address    : 0x40022020

 Size     : 112 Bytes

██████████████████████████████████████████████████ 100%

OPTION BYTE PROGRAMMING VERIFICATION:

Error: Expected value for Option Byte "pcrop1a_strt": 0x3F, found: 0x0

Error: Option Byte Programming failed

[GwenoleB]

Hello @Rena Z.​,

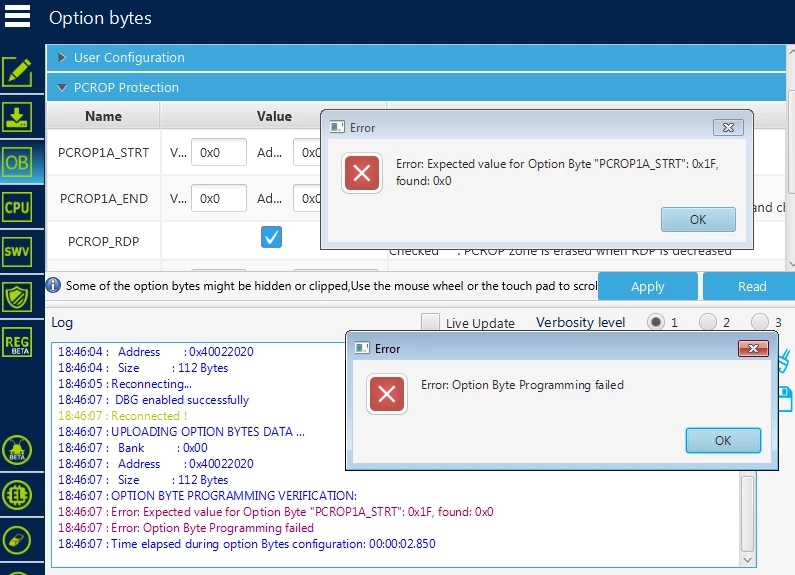

Can you try to read and change Option Bytes through CubeProgrammer?

I'll investigate Programmer_CLI.

Another test could be to read the Option bytes register in debug mode.

Best Regards,

Gwénolé

[Rena Z.]

Here is an additional log where I have increased the verbosity level to 3:

---------------------------------------------------------------------------------------------------

 07:03:34:480 : r ap 0 @0x1FFF6FFE 0x00000004 bytes Data 0xFFFF00B2

 07:03:35:575 : r ap 0 @0x1FFF6FFE 0x00000004 bytes Data 0xFFFF00B2

 07:03:35:724 : Option byte command : -ob PCROP_RDP=1 PCROP1A_STRT=0xff

 07:03:35:729 : PROGRAMMING OPTION BYTES AREA ...

 07:03:35:729 : Reading data...

 07:03:35:781 : r ap 0 @0x1FFF77DD 0x00000004 bytes Data 0xFFFFFFFF

 07:03:35:781 : Database: Config 0 is active.

 07:03:35:782 : Warning: Option Byte: PCROP_RDP, value: 0x1, was not modified.

 07:03:35:786 :  Bank     : 0x00

 07:03:35:786 :  Address    : 0x40022020

 07:03:35:787 :  Size     : 112 Bytes

 07:03:35:787 : OB buffer: aafeffffff000000000000803f0000003f000000ff00000000000000ffffffff0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

 07:03:35:788 : Buffer program...

 07:03:35:842 : halt ap 0

 07:03:35:842 : w ap 0 reg 15 PC  (0x20000000)

 07:03:35:895 : w ap 0 reg 17 MSP (0x20000500)

 07:03:35:948 : w ap 0 reg 16 xPSR (0x01000000)

 07:03:36:475 : w ap 0 @0x20000B20 : 0x00000200 bytes, Data 0x00000000...

 07:03:36:490 : w ap 0 @0x20000000 : 0x00000004 bytes, Data 0x0000BE00...

 07:03:38:106 : w ap 0 @0x20000004 : 0x000006F4 bytes, Data 0x4891B580...

 07:03:38:212 : w ap 0 @0x20000B20 : 0x00000070 bytes, Data 0xFFFFFEAA...

 07:03:38:212 : Loader write option bytes...

 07:03:38:212 : Init flashloader...

 07:03:38:237 : halt ap 0

 07:03:38:303 : w ap 0 reg 0 R0  0x00000001

 07:03:38:356 : w ap 0 reg 1 R1  0x00000000

 07:03:38:410 : w ap 0 reg 2 R2  0x00000000

 07:03:38:463 : w ap 0 reg 3 R3  0x00000000

 07:03:38:516 : w ap 0 reg 4 R4  0x00000000

 07:03:38:569 : w ap 0 reg 5 R5  0x00000000

 07:03:38:622 : w ap 0 reg 6 R6  0x00000000

 07:03:38:676 : w ap 0 reg 7 R7  0x00000000

 07:03:38:729 : w ap 0 reg 8 R8  0x00000000

 07:03:38:782 : w ap 0 reg 9 R9  0x00000000

 07:03:38:835 : w ap 0 reg 10 R10 0x00000000

 07:03:38:888 : w ap 0 reg 11 R11 0x00000000

 07:03:38:941 : w ap 0 reg 12 R12 0x00000000

 07:03:38:994 : w ap 0 reg 13 SP  0x00000000

 07:03:39:048 : w ap 0 reg 14 LR  0x20000001

 07:03:39:101 : w ap 0 reg 15 PC  0x20000005

 07:03:39:155 : w ap 0 reg 16 xPSR 0x01000000

 07:03:39:207 : w ap 0 reg 17 MSP 0x20000AF4

 07:03:39:259 : w ap 0 reg 18 PSP 0x00000000

 07:03:39:259 : run ap 0

 07:03:39:310 : halt ap 0

 07:03:39:342 : r ap 0 reg 0 R0  0x00000001

 07:03:39:408 : w ap 0 reg 0 R0  0x40022020

 07:03:39:461 : w ap 0 reg 1 R1  0x00000070

 07:03:39:514 : w ap 0 reg 2 R2  0x20000B20

 07:03:39:567 : w ap 0 reg 3 R3  0x00000002

 07:03:39:620 : w ap 0 reg 4 R4  0x00000000

 07:03:39:673 : w ap 0 reg 5 R5  0x00000000

 07:03:39:726 : w ap 0 reg 6 R6  0x00000000

 07:03:39:779 : w ap 0 reg 7 R7  0x00000000

 07:03:39:833 : w ap 0 reg 8 R8  0x00000000

 07:03:39:886 : w ap 0 reg 9 R9  0x00000000

 07:03:39:939 : w ap 0 reg 10 R10 0x00000000

 07:03:39:992 : w ap 0 reg 11 R11 0x00000000

 07:03:40:045 : w ap 0 reg 12 R12 0x00000000

 07:03:40:098 : w ap 0 reg 13 SP  0x00000000

 07:03:40:151 : w ap 0 reg 14 LR  0x20000001

 07:03:40:204 : w ap 0 reg 15 PC  0x2000007D

 07:03:40:257 : w ap 0 reg 16 xPSR 0x01000000

 07:03:40:311 : w ap 0 reg 17 MSP 0x20000AF4

 07:03:40:364 : w ap 0 reg 18 PSP 0x00000000

 07:03:40:365 : run ap 0

 07:03:40:415 : WriteOB function terminated with connection error due to OB_Launch

 07:03:40:428 : Reconnecting...

 07:03:41:530 : ST-LINK SN : xxxxxxxxxxxxxxxxxxxxx

 07:03:41:530 : ST-LINK FW : V2J40M27

 07:03:41:532 : Board    : NUCLEO-G071RB

 07:03:41:533 : Voltage   : 3.22V

 07:03:41:832 : SWD freq  : 15 KHz

 07:03:41:833 : Connect mode: Normal

 07:03:41:833 : Reset mode : Software reset

 07:03:41:864 : Device ID  : 0x460

 07:03:41:891 : Revision ID : Rev B

 07:03:41:918 : halt ap 0

 07:03:41:935 : r ap 0 @0x4002103C 0x00000004 bytes Data 0x00000000

 07:03:41:953 : w ap 0 @0x4002103C 0x00000004 bytes Data 0x08000000

 07:03:41:954 : DBG enabled successfully

 07:03:41:970 : r ap 0 @0x40015808 0x00000004 bytes Data 0x00000000

 07:03:41:985 : w ap 0 @0x40015808 0x00000004 bytes Data 0x00001800

 07:03:41:987 : r ap 0 @0x40015804 0x00000004 bytes Data 0x00000000

 07:03:41:995 : w ap 0 @0x40015804 0x00000004 bytes Data 0x00000007

 07:03:41:996 : Reconnected !

 07:03:41:996 : Success with Time elapsed during Reconnect: 467 ms

 07:03:41:997 : Reading data...

 07:03:42:051 : r ap 0 @0x1FFF77DD 0x00000004 bytes Data 0xFFFFFFFF

 07:03:42:051 : Database: Config 0 is active.

 07:03:42:052 : UPLOADING OPTION BYTES DATA ...

 07:03:42:052 :  Bank     : 0x00

 07:03:42:053 :  Address    : 0x40022020

 07:03:42:053 :  Size     : 112 Bytes

 07:03:42:054 : Reading data...

 07:03:42:153 : r ap 0 @0x40022020 0x00000070 bytes Data 0xFFFFFEAA

 07:03:42:156 : OPTION BYTE PROGRAMMING VERIFICATION:

 07:03:42:156 : Error: Expected value for Option Byte "PCROP1A_STRT": 0xFF, found: 0x0

 07:03:42:213 : Error: Option Byte Programming failed

 07:03:42:250 : Reading data...

 07:03:42:263 : r ap 0 @0x1FFF77DD 0x00000004 bytes Data 0xFFFFFFFF

 07:03:42:264 : Database: Config 0 is active.

 07:03:42:265 : Time elapsed during option Bytes configuration: 00:00:06.482

 07:03:42:537 : r ap 0 @0x1FFF6FFE 0x00000004 bytes Data 0xFFFF00B2

 07:03:42:537 : UPLOADING OPTION BYTES DATA ...

 07:03:42:537 :  Bank     : 0x00

 07:03:42:537 :  Address    : 0x40022020

 07:03:42:537 :  Size     : 112 Bytes

 07:03:42:538 : Reading data...

 07:03:42:538 : r ap 0 @0x40022020 0x00000070 bytes Data 0xFFFFFEAA

 07:03:42:545 : r ap 0 @0x1FFF6FFE 0x00000004 bytes Data 0xFFFF00B2

[Rena Z.]

same issue with STM32CubeProgrammer.

>Another test could be to read the Option bytes register in debug mode.

how to read out in debug mode?

[Simon.T]

Hello @Rena Z.​ ,

To reset the PCROP1 you need also to perform a transition from RDP1 to RDP0.

So it means:

1-Check PCROP_RDP and put RDP=BB (level 1 reed protection)

2-Put RDP=AA (level 0, no protection)

3- Your PCROP registers have the default values.

Just be careful to not put the circuit as RDP level 2 otherwise the circuit will be blocked for ever.

Best regards,

Simon

[Rena Z.]

What a pitty! All the nice CLI options to restore the option bytes are only available for STM32WL devices ???

STM32_Programmer_CLI.exe -c port=SWD -ob unlockchip

   -------------------------------------------------------------------

            STM32CubeProgrammer v2.12.0

   -------------------------------------------------------------------

ST-LINK SN : xxxxxxxxxxxxxxxxxxxxxxx

ST-LINK FW : V2J40M27

Board    : NUCLEO-G071RB

Voltage   : 3.21V

SWD freq  : 4000 KHz

Connect mode: Normal

Reset mode : Software reset

Device ID  : 0x460

Revision ID : Rev B

Device name : STM32G07x/STM32G08x

Flash size : 128 KBytes

Device type : MCU

Device CPU : Cortex-M0+

BL Version : 0xB2

Debug in Low Power mode enabled

UPLOADING OPTION BYTES DATA ...

 Bank     : 0x00

 Address    : 0x40022020

 Size     : 112 Bytes

██████████████████████████████████████████████████ 100%

Error: Only STM32WL devices are supported.

Error: Fail to unlock chip

STM32_Programmer_CLI.exe -c port=SWD -setdefaultob

   -------------------------------------------------------------------

            STM32CubeProgrammer v2.12.0

   -------------------------------------------------------------------

ST-LINK SN : xxxxxxxxxxxxxxxxxxxxxxx

ST-LINK FW : V2J40M27

Board    : NUCLEO-G071RB

Voltage   : 3.21V

SWD freq  : 4000 KHz

Connect mode: Normal

Reset mode : Software reset

Device ID  : 0x460

Revision ID : Rev B

Device name : STM32G07x/STM32G08x

Flash size : 128 KBytes

Device type : MCU

Device CPU : Cortex-M0+

BL Version : 0xB2

Debug in Low Power mode enabled

 Set default OB for STM32WL

Error: Only STM32WL devices are supported.

[GwenoleB]

Hello @Rena Z.​,

I'll provide you a quick script to reset the Option bytes by software.

I'm quite surprising about the behavior you faced.

Best Regards,

Gwénolé

[SAAD_ELF]

I have a similar issue, can i have the script that put registers to default value ?

[kob77]

Hi, I generally had the same problem. I had changed the PCROP1_START value to be less than PCROP1_END, and my STM32G4 got stuck. I was not able to program almost any Option Bytes.

The solution was to simultaneously disable PCROP_RDP and RDP Option Bytes. Then I reset RDP from 0xBB to 0xAA, and I regained control. After that, chip erase became possible again.

If this comment was helpful, please mark this answer as a solution for other users.
