I am working on a STM 32 project in which at debugging step I found error thatis Error: The download command you trying to perform (--download) is missing the filePath to be loaded or it has a wrong extension Error in STM32CubeProgrammer Shutting dow

[SGoel.2]

..

[MM..1]

And ??

Create Simple thread name and details ...

[Tesla DeLorean]

Without some kind of command line to look at, or some context, these types of questions are hard to resolve.

Make a better presentation.

[SGoel.2]

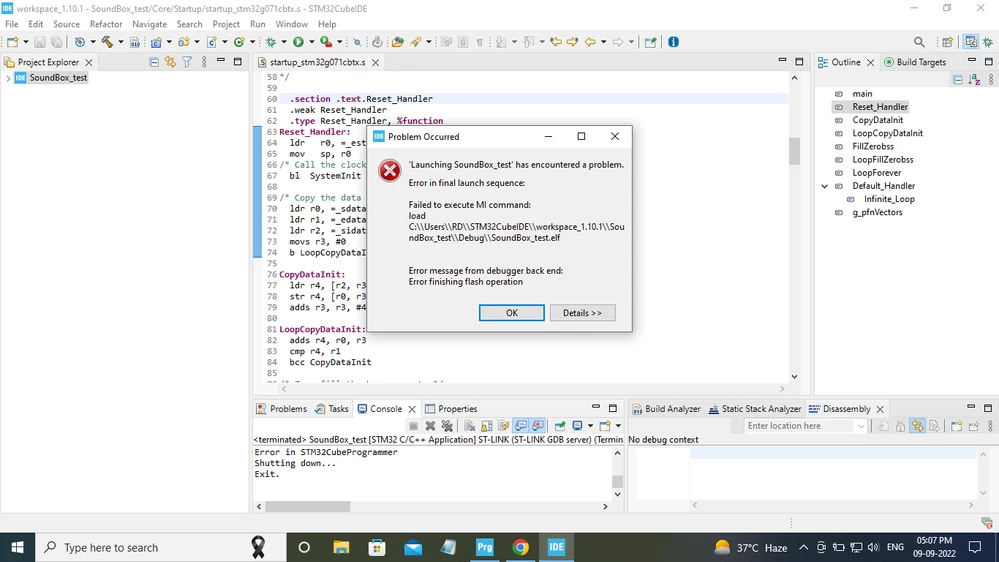

@Community member​ and @MM..1​ I have attached the image of the dialogue box showing the error. Again I have tried but the same error occurred. Please help me.

[MM..1]

Still hard to help, maybe incomplete debug configuration, maybe long project path or folder names with spaces or special chars usw.

[SGoel.2]

I have also made a new project with this name and deleted the old one copied all files and folders but still showing this error.

[MM..1]

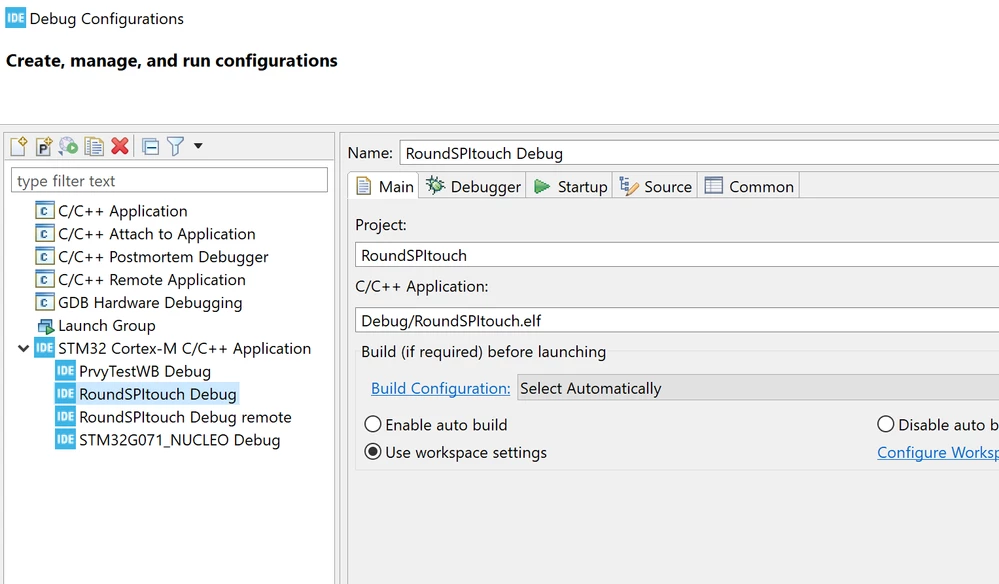

Try show screen debug config , on your shot i see used \\ \\ path , from where is your project git? On example

[SGoel.2]

@MM..1​ This is the debug config screenshot.

[MM..1]

Try load builded ELF externaly over stlink utility or proggrammer. If works, seems your IDE install is incomplete or corrupt, try reinstall.

[Semer CHERNI]

Hello @SGoel.2​

As mentioned by @MM..1​  try to use CubeProgrammer to flash the binary. That result of this test could help to identify if it is a debugger issue or Programmer issue.

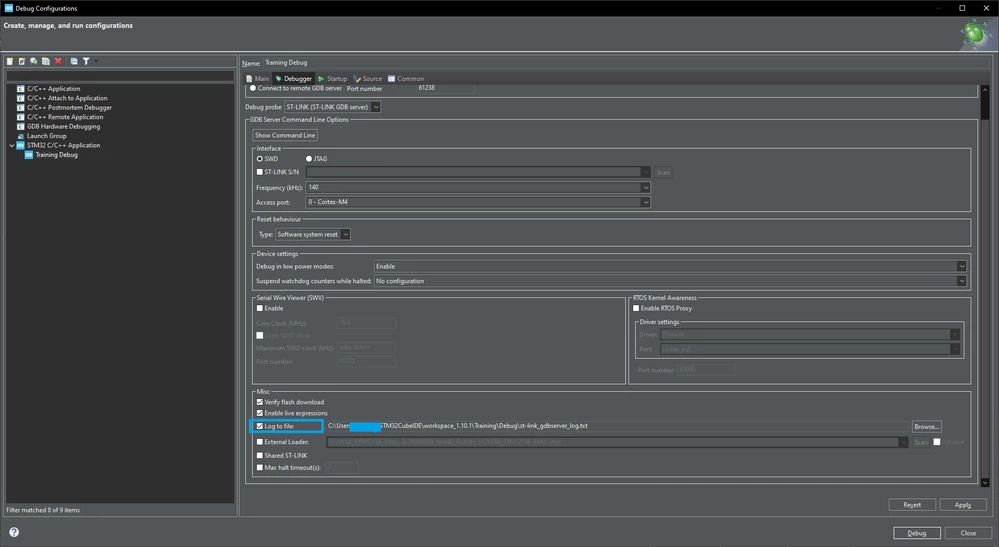

Also I want to ask you to post the rest of the debug configuration and try to generate and send post the debug log so I can analyze it.

You can do that by checking the box "log to file" under the debugger configuration window.



Kind regards,

Semer.

[SGoel.2]

@MM..1​  and @Semer CHERNI​ Thank you for your help. Now I have resolve the issue it is because of the special character(&) is present in the directory path of the workspace So due to this program is not debugging Now i have changed the directory for workspace.

Hope it will helpful for others.
