Question

I try to connect STM32H750-DK with STM32CudeProgrammer but it shows as the picture. What should I do?

  • March 8, 2023
  • 14 replies
  • 6868 views

..

This topic has been closed for replies.

14 replies

wsuwa.1
wsuwa.1Author
Associate II
March 11, 2023

I don't understand, can you make an example video?

Tesla DeLorean
Guru
March 11, 2023

Not sure anyone here is that invested, perhaps you work with someone who can assist you?

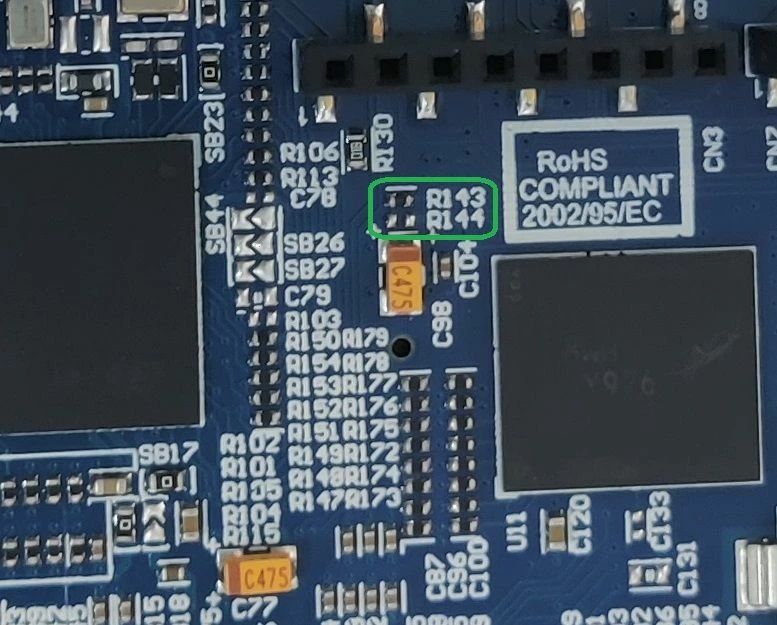

You could bridge the R144 pads with a wire, or wire some jumper or switch.

0693W00000aIiEbQAK.jpgYou should probably establish that the code you put on the board is where the problem is. As I understand the H750B-DK it uses the LDO, where as the H745I-DISCO uses the SMPS.

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
wsuwa.1
wsuwa.1Author
Associate II
March 11, 2023

got it

thank you

Piranha
Principal III
March 11, 2023

Connect mode: Under Reset

Reset mode : Hardware reset

Tesla DeLorean
Guru
March 11, 2023

That might work, but these H7's can be bricked quite easily to the point where serious intervention is required. Why there's not a jumper or switch perplexes me.

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
ST Employee
March 14, 2023

Hello @wsuwa.1​ ,

Thanks for your feedback,

Adding to what @Community member​ suggested, please check the following article How to unbrick an STM32H7 after setting the wrong power mode

Let me know if it helps!

Sara.
