Issue with .elf file when linker section is not placed according to adress.

[MKori.1]

Hello,

to store my SW build information I defined in the linker file a section with a fixed address. like this:

 /* placing my build information at a named section: */
 .BuildInformationSegment 0x0800F000 :
 {
 KEEP(*(.BuildInformationSection)) /* keep my variable even if not referenced */
 }

This works and creates the section containing the string in the .bin. and .elf.

even when I misplace this part and dont sort it according to its address.

When I load the .elf into the STM32CubeProgrammer it looks like the .map file (or similar information) is used to generate a different binary which, when flashed leads to an error.

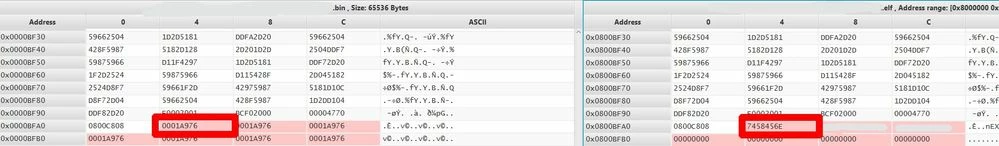

Here in the screenshot (some details removed) a difference between the bin. and the .elf is visible. This difference only occurs in STM32CubeProgrammer as the .bin is directly generated from the .elf via arm-none-eabi-objcopy. It occurs on the spot where the section is visible in the .map file:

 0x000000000800bf22 STL_TM_RAM_BckUpBuf_MarchCXStep

.BuildInformationSegment
 0x000000000800f000 0x60
 *(.BuildInformationSection)
 .BuildInformationSection
 0x000000000800f000 0x60 ./Core/Src/production_testing.o

.rodata 0x000000000800bfa4 0x11a8



I know how to fix this in my software (place my section on the correct spot in the linker file) but still find it critical that the STM32CubeProgrammer creates a difference between .elf and .bin and therefore can lead to unexpeced behaviour.

I cant share my code or binaries but it should be reproducable with the linker code above placed somewhere else than in the end of the flash.

Best regards

Martin

[MKori.1]

Hi,

I might add the output for readelf to make my point a little bit clearer. Please see below.

Both outputs differ in the position of BuildInform but lead to working binaries:

The bad one:

C:\my_Project>arm-none-eabi-readelf -S my_prj_bad.elf
There are 31 section headers, starting at offset 0x10549c:

Section Headers:
 [Nr] Name Type Addr Off Size ES Flg Lk Inf Al
 [ 0] NULL 00000000 000000 000000 00 0 0 0
 [ 1] .isr_vector PROGBITS 08000000 000034 0000bc 00 A 0 0 1
 [ 2] .text PROGBITS 080000bc 0000f0 00a86c 00 AX 0 0 4
 [ 3] text PROGBITS 0800a928 00a95c 00167c 00 AX 0 0 4
 [ 4] .rodata PROGBITS 0800bfa4 00bfd8 0011a8 00 A 0 0 4
 [ 5] .BuildInform[...] PROGBITS 0800f000 00d180 000060 00 WA 0 0 4
 [ 6] .ARM.extab PROGBITS 0800d14c 00d1e0 000000 00 W 0 0 1
 [ 7] .ARM ARM_EXIDX 0800d14c 00d1e0 000008 00 AL 2 0 4
 [ 8] .preinit_array PREINIT_ARRAY 0800d154 00d1e8 000000 04 WA 0 0 1
 [ 9] .init_array INIT_ARRAY 0800d154 00d1e8 000004 04 WA 0 0 4
 [10] .fini_array FINI_ARRAY 0800d158 00d1ec 000004 04 WA 0 0 4
 [11] backup_buffe[...] NOBITS 20000000 00d1f0 000020 00 WA 0 0 4
 [12] .data PROGBITS 20000020 0100b4 00003c 00 WA 0 0 4
 [13] .bss NOBITS 2000005c 0100f0 000480 00 WA 0 0 4
 [14] ._user_heap_stack NOBITS 200004dc 0100f0 000604 00 WA 0 0 1
 [15] .ARM.attributes ARM_ATTRIBUTES 00000000 0100f0 00002e 00 0 0 1
 [16] .debug_info PROGBITS 00000000 01011e 01343c 00 0 0 1
 [17] .debug_abbrev PROGBITS 00000000 02355a 003a0e 00 0 0 1
 [18] .debug_aranges PROGBITS 00000000 026f68 0011d0 00 0 0 8
 [19] .debug_ranges PROGBITS 00000000 028138 001000 00 0 0 8
 [20] .debug_macro PROGBITS 00000000 029138 0190b2 00 0 0 1
 [21] .debug_line PROGBITS 00000000 0421ea 017d60 00 0 0 1
 [22] .debug_str PROGBITS 00000000 059f4a 099c9f 01 MS 0 0 1
 [23] .comment PROGBITS 00000000 0f3be9 0039dd 00 0 0 1
 [24] .iar.rtmodel PROGBITS 00000000 0f75c6 000111 00 0 0 1
 [25] .iar_vfe_header PROGBITS 00000000 0f76d7 000064 00 0 0 4
 [26] .debug_frame PROGBITS 00000000 0f773b 004c38 00 0 0 4
 [27] .symtab SYMTAB 00000000 0fc373 005990 10 28 1071 4
 [28] .strtab STRTAB 00000000 101d03 003539 00 0 0 1
 [29] .shstrtab STRTAB 00000000 10523c 000160 00 0 0 1
 [30] CRCs area PROGBITS 0800ff00 10539c 000100 00 WA 0 0 4

The good one:

C:\my_Project>arm-none-eabi-readelf -S my_prj_good.elf
There are 31 section headers, starting at offset 0x10543c:

Section Headers:
 [Nr] Name Type Addr Off Size ES Flg Lk Inf Al
 [ 0] NULL 00000000 000000 000000 00 0 0 0
 [ 1] .isr_vector PROGBITS 08000000 000034 0000bc 00 A 0 0 1
 [ 2] .text PROGBITS 080000bc 0000f0 00a86c 00 AX 0 0 4
 [ 3] text PROGBITS 0800a928 00a95c 00167c 00 AX 0 0 4
 [ 4] .rodata PROGBITS 0800bfa4 00bfd8 0011a8 00 A 0 0 4
 [ 5] .ARM.extab PROGBITS 0800d14c 00d180 000000 00 W 0 0 1
 [ 6] .ARM ARM_EXIDX 0800d14c 00d180 000008 00 AL 2 0 4
 [ 7] .preinit_array PREINIT_ARRAY 0800d154 00d188 000000 04 WA 0 0 1
 [ 8] .init_array INIT_ARRAY 0800d154 00d188 000004 04 WA 0 0 4
 [ 9] .fini_array FINI_ARRAY 0800d158 00d18c 000004 04 WA 0 0 4
 [10] .BuildInform[...] PROGBITS 0800f000 00f034 000060 00 WA 0 0 4
 [11] backup_buffe[...] NOBITS 20000000 00f094 000020 00 WA 0 0 4
 [12] .data PROGBITS 20000020 010054 00003c 00 WA 0 0 4
 [13] .bss NOBITS 2000005c 010090 000480 00 WA 0 0 4
 [14] ._user_heap_stack NOBITS 200004dc 010090 000604 00 WA 0 0 1
 [15] .ARM.attributes ARM_ATTRIBUTES 00000000 010090 00002e 00 0 0 1
 [16] .debug_info PROGBITS 00000000 0100be 01343c 00 0 0 1
 [17] .debug_abbrev PROGBITS 00000000 0234fa 003a0e 00 0 0 1
 [18] .debug_aranges PROGBITS 00000000 026f08 0011d0 00 0 0 8
 [19] .debug_ranges PROGBITS 00000000 0280d8 001000 00 0 0 8
 [20] .debug_macro PROGBITS 00000000 0290d8 0190b2 00 0 0 1
 [21] .debug_line PROGBITS 00000000 04218a 017d60 00 0 0 1
 [22] .debug_str PROGBITS 00000000 059eea 099c9f 01 MS 0 0 1
 [23] .comment PROGBITS 00000000 0f3b89 0039dd 00 0 0 1
 [24] .iar.rtmodel PROGBITS 00000000 0f7566 000111 00 0 0 1
 [25] .iar_vfe_header PROGBITS 00000000 0f7677 000064 00 0 0 4
 [26] .debug_frame PROGBITS 00000000 0f76db 004c38 00 0 0 4
 [27] .symtab SYMTAB 00000000 0fc313 005990 10 28 1071 4
 [28] .strtab STRTAB 00000000 101ca3 003539 00 0 0 1
 [29] .shstrtab STRTAB 00000000 1051dc 000160 00 0 0 1
 [30] CRCs area PROGBITS 0800ff00 10533c 000100 00 WA 0 0 4

Best regards,

Martin

[MKori.1]

I now also tried it with the STM32_Programmer_CLI and get the same, bad results. When I flash the .elf and calculate the checksum it is clearly different from when I flash the binary copy of the .elf done with objcopy and the software doesn't run. When I download the flash contents to a binary I can see the same difference as above.

STM32_Programmer_CLI -c port=SWD -d DEBUG_bad.elf -v -checksum
 Flash Memory checksum calculating ...
 Flash memory [0x08000000 : 0x08010000] - Checksum : 0x005EAFAA
arm-none-eabi-objcopy -O binary DEBUG_bad.elf DEBUG_bad_objcopy.bin
STM32_Programmer_CLI -c port=SWD -d DEBUG_bad_objcopy.bin 0x08000000 -v -checksum
 Flash Memory checksum calculating ...
 Flash memory [0x08000000 : 0x08010000] - Checksum : 0x0049BBDB
