No STM32 target found - STM32G030K6T6

[Sungjae Kim]

Hi, I'm making a board for UART and I2C communication.

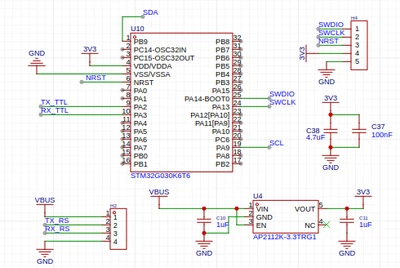

Please refer to the schematic below;





I put 5V External power supply at VBUS,

and connects SWDIO, SWCLK, NRST, 3V3, GND to the STLINK V3 Minie.



However it shows "No STM32 target found" message on STM32CubeProgrammer when I clicked "Connect" button.

Since the "Target voltage" shows 3.31V, I think there is no power problem.

Is there something that I missing?

Please let me know.

Thank you.

[STTwo-32]

Hello @Sungjae Kim

What I can see is that you are using PA13 as SWCLK and PA14-BOOT0 as SWDIO. But according to the Table 12 of the DS12991 Rev4 , you should be using PA13 as SWDIO and PA14-BOOT0 as SWCLK:



Best Regards.

STTwo-32



[Sungjae Kim]

STTwo-32, Thank you for prompt reply and catching my mistake.

I have twisted SWCLK and SWDIO, now it recognized successfully.

Thank you and have a nice day :)

[Peter BENSCH]

@Sungjae Kim And please do yourself a favor and connect a 100nF from pin NRST to GND, which guarantees a clean reset at power-up.
