STM32CubeIDE and STM32CubeProgramer can't erase a page on BANK 2 of STM32U575.

[VGing.1]

Hi,

Does anyone are able to erase a memory page of BANK2 on a STM32U575 with ST-LINK/V2 in STM32CubeIDE or STM32CubeProgramer? The mcu is configure in dual bank by default. I'm only able to work with a SEGGER JLINK (in IDE) or it is possible to program mcu after a full chip erase. When I put it in single bank mode, the IDE only erase 8K of the 16K page and generate an error at verification.

Thanks

[Kamil Duljas]

I have u575 but in work place. Tomorrow I'm going to check ​

[Kamil Duljas]

Hmmm. In documentation U575 say that "page have 8K" not 16K? Perhaps you use wrong linker script?

[Kamil Duljas]

Or settings your debugger/programmer are wrong :)

[VGing.1]

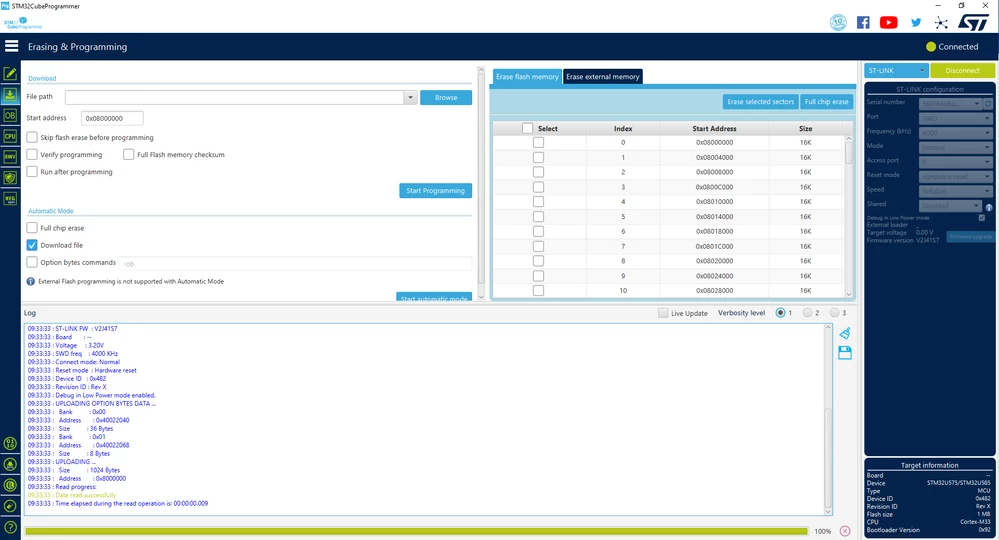

Here is a snapshot of the programer.

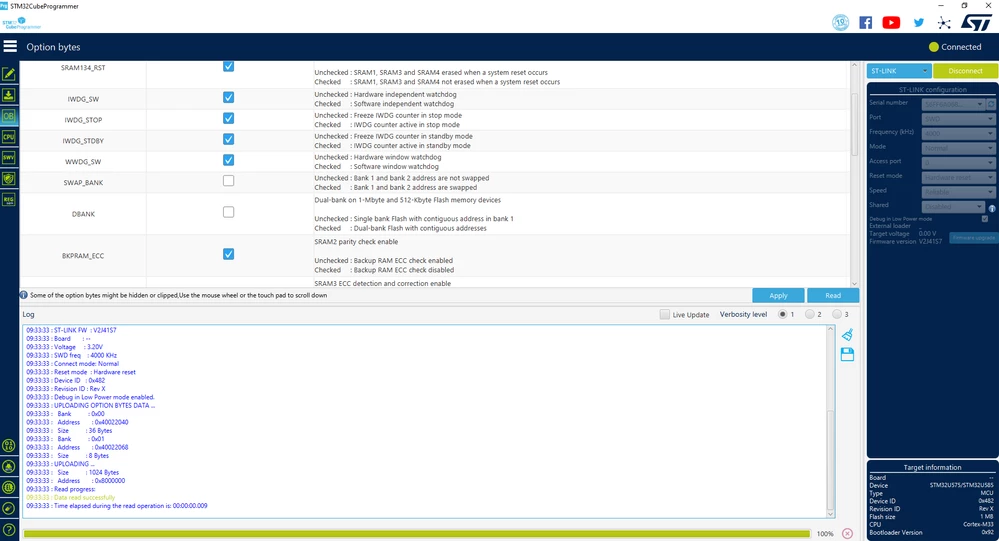

When I uncheck the DBANK Option like next picture.
