STM32CubeProgrammer fails to connect to Nucleo-F767

[sirius506]

Posted on January 24, 2018 at 10:26

I'd like to use STM32CubeProg with Nucleo-F767 via USB, but CubeProg fails to connect with 'Corrupted Data base' error. I've tried both Windows and MacOS versions, results same error.

I guess STM_Prog_DB.xml is the 'data base' file.  How can I fix this DB file?

Thanks in advance,

#stm32cubeprogrammer

[cazaux.clement]

Posted on February 09, 2018 at 18:25

Hello,

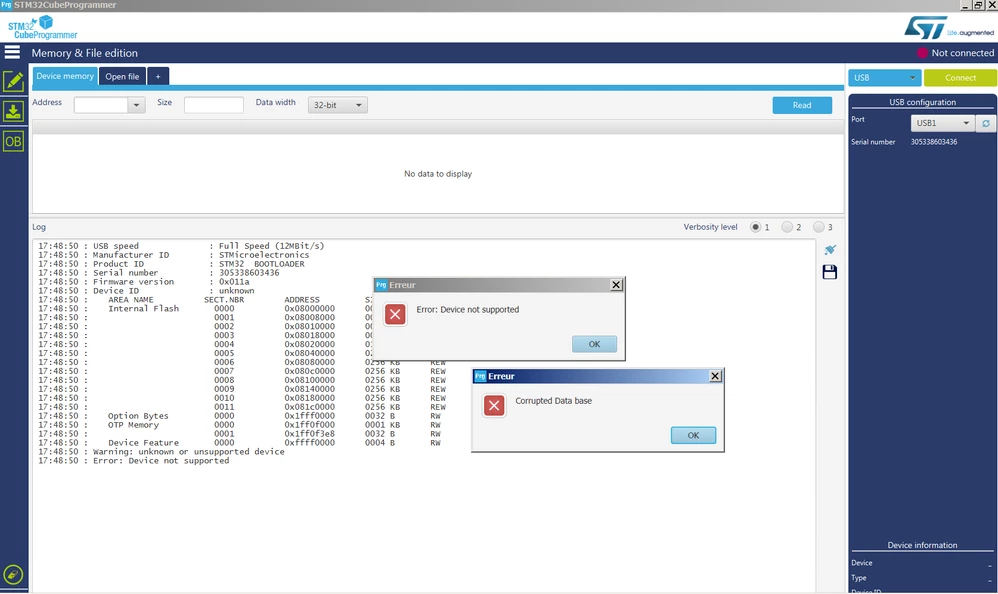

I have the same issue while trying to use USB DFU on a board with STM32F779 NIH6 78A4U VQ Z:

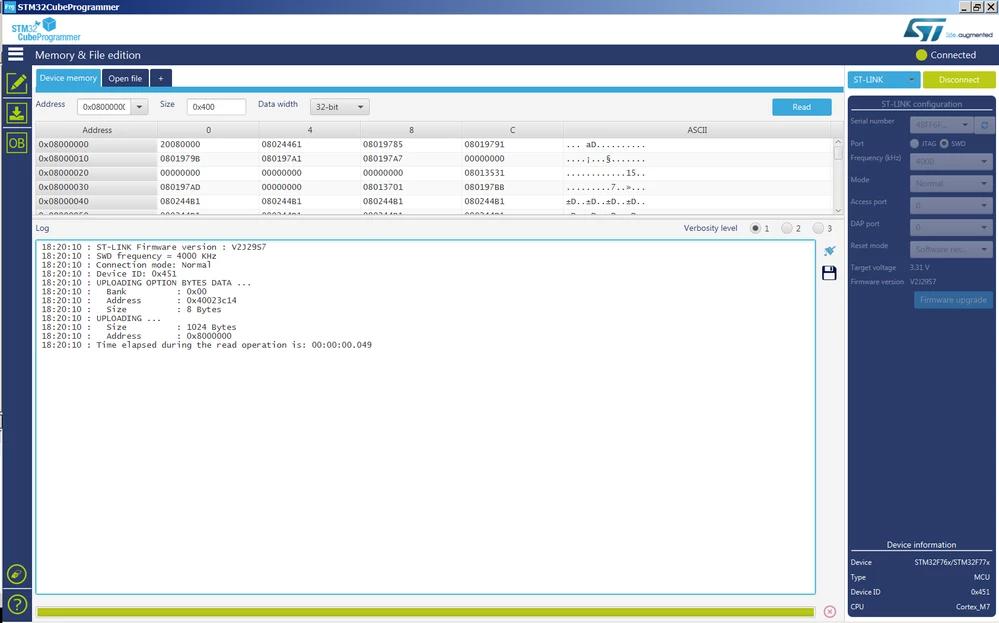

I do connect correctly with STLink connection:

Does the issue come from my STM32 code or from the CubeProgrammer utility? What  is that ''Data base'' is '' Corrupted''?

Any help/clue would be appreciated!

Edit :

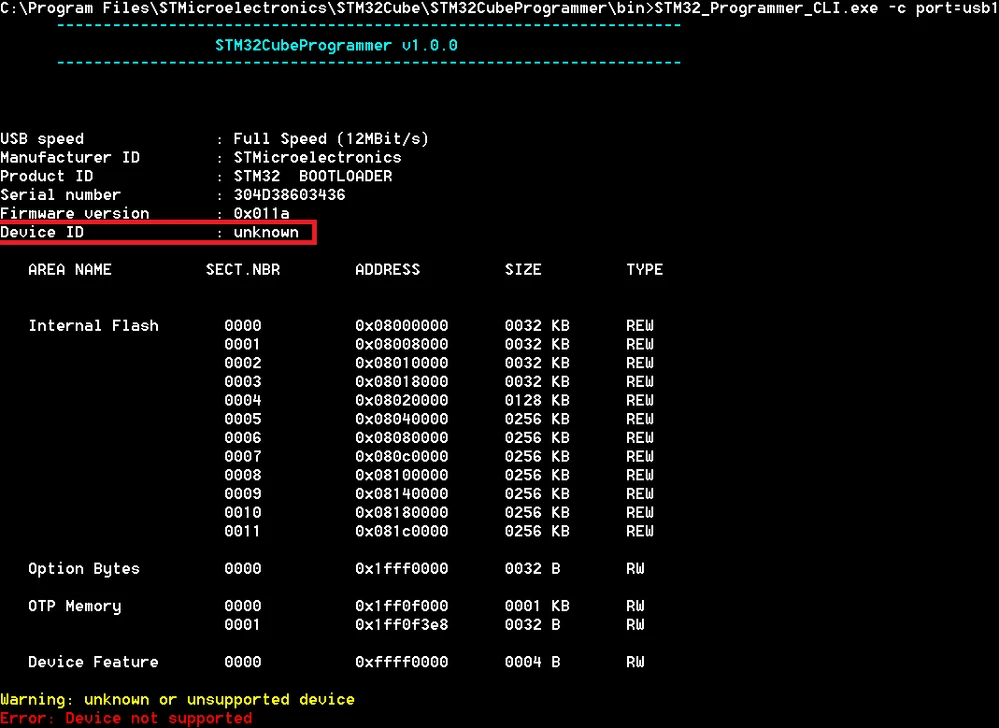

I also give a try with the command line utility, without success : (see capture below)

I think that the ''corrupted data base'' message that we get on CubeProgrammer GUI is due to the ''Device ID  Unknown''  where I could get '' DeviceID 0x451''

What is really puzzling is that Serial Number and firmware version is correctly read... Same behavior on the 10 boards that we produce.

[Imen.D]

Posted on February 26, 2018 at 16:40

Hello,

This issue is already confirmed along to our development team and will be fixed in the coming release.

Best Regards,

Imen

[cazaux.clement]

Posted on February 26, 2018 at 17:03

Thank you for your reply Imen.

Can your tell us when this new release will come?

Best Regards,
