STM32G071: Watchdog Timer:

[Karan 123]

Hi,

How to use STM32G071 watchdog timer with STM32Cube IDE ?

--

karan

[Simon.T]

Hello @Community member​ ,

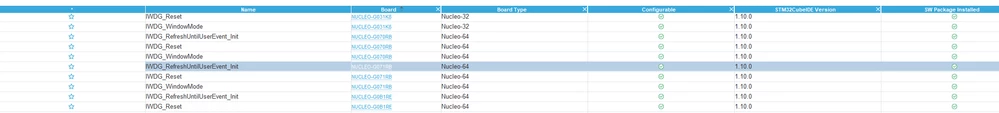

There are plenty of examples in cube using the IWDG or WWDG. You can easily take it and using it in your own code:



BR,

Simon

[Karan 123]

Hi @Simon.T​

Thanks for update..

I have seen example as below:

\\en.stm32cubeg0\STM32Cube_FW_G0_V1.3.0\Projects\NUCLEO-G071RB\Examples\WWDG\WWDG_Example\Src

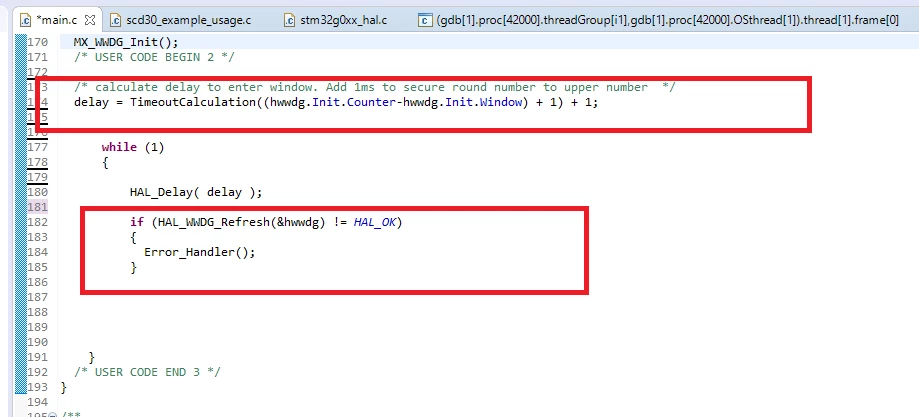

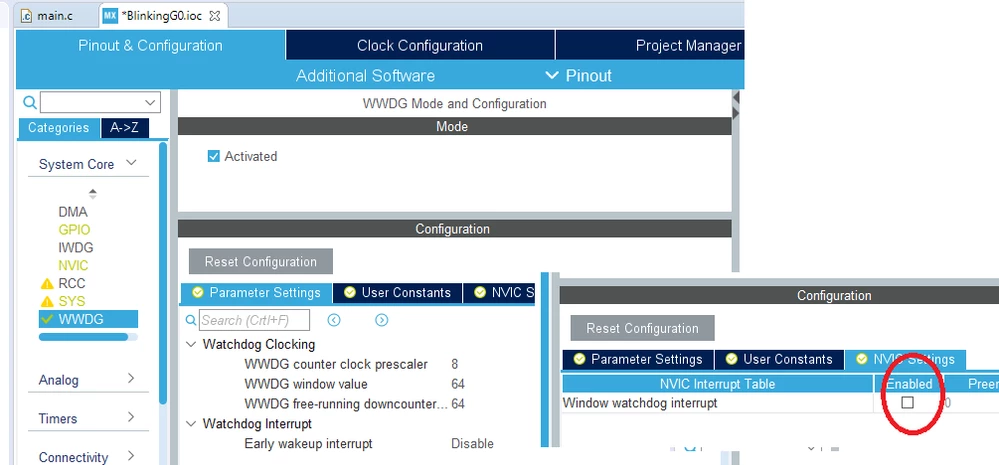

And configure as below without any interrupt.



And do addition as attached file. But STM32G0 reset indefinitely Not working properly.

Please guide me..

--

Karan

[Simon.T]

You are not following the example. You are putting a 4000ms delay just after the init of the WWDG which is 2 times more than the maximum time out of the WWDG.

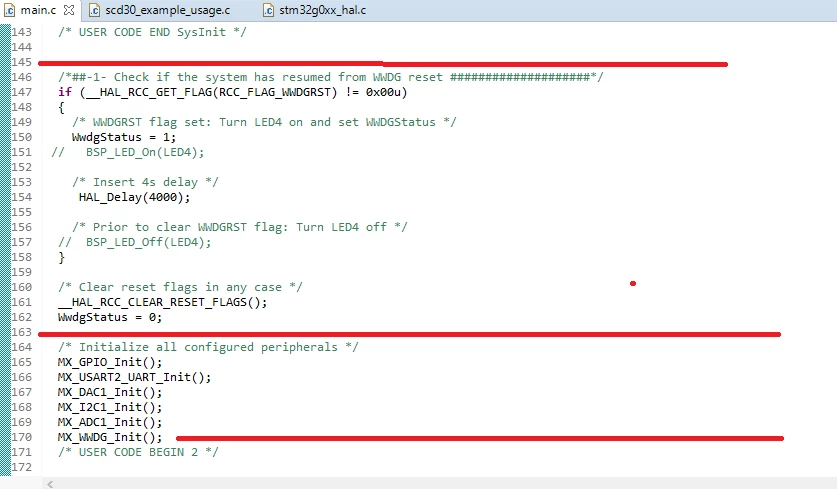

The condition "if (__HAL_RCC_GET_FLAG(RCC_FLAG_WWDGRST) != 0x00u)" and  __HAL_RCC_CLEAR_RESET_FLAGS();

 WwdgStatus = 0;

need to be before the MX_WWDG_Init();

Without this the MCU will reset every time.

[Karan 123]

Hi @STALA.1 (ST Employee)​

Thanks for update..

I have done as below but still same results . MCU keep reseting every time.



--

Karan

[Simon.T]

Hello Karan,

Is it possible to see the Option bit WWDG_SW. And check if the configuration is Hardware window watchdog or software window watchdog.

Because the example run only when the WWDG_SW is in software mode.

Best regards,

Simon

[Karan 123]

Hi @STALA.1 (ST Employee)​

Thanks for update..

In STM32CubeProgrammer

The Option bit WWDG_SW is already checked to use software window watchdog.

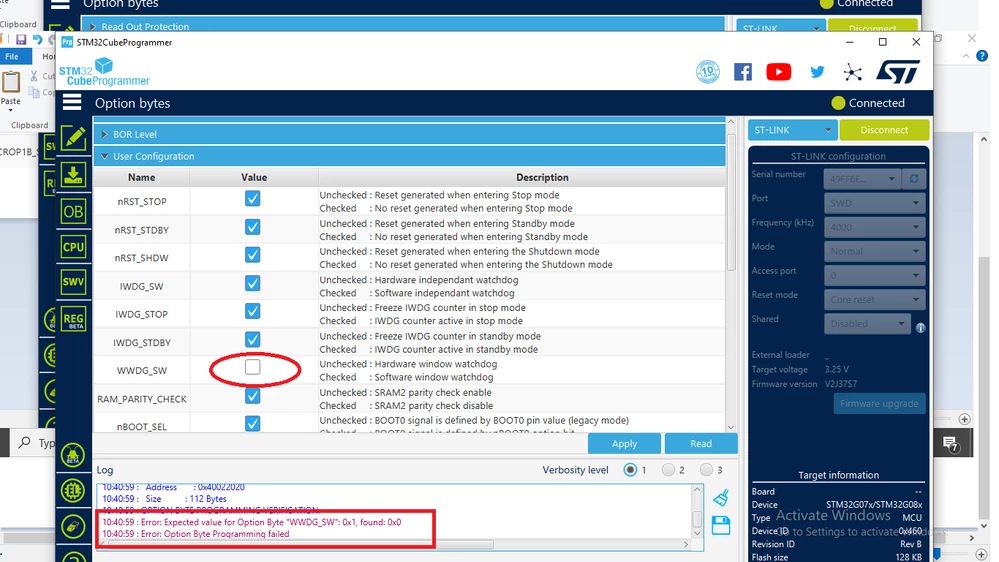

But when i unchecked with I am unable to Erase / program as well as Option bits to STM32 Chip.

STM32 Chip is detected and I am able to read.





With STM32CubeIDE,

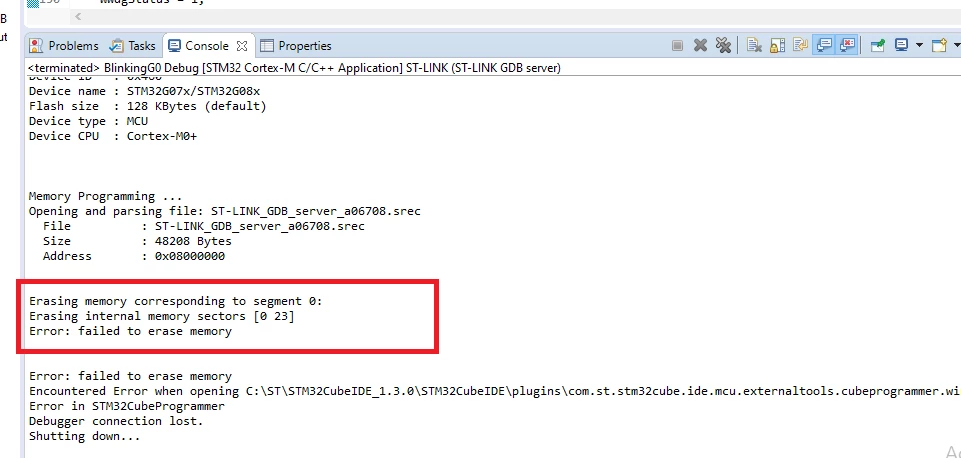

I am getting below error.



--

Karan

[Simon.T]

Hello Karan,

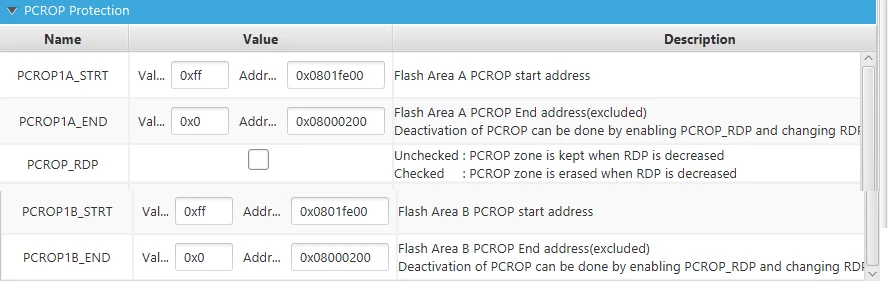

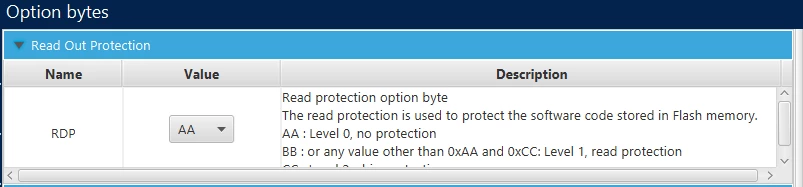

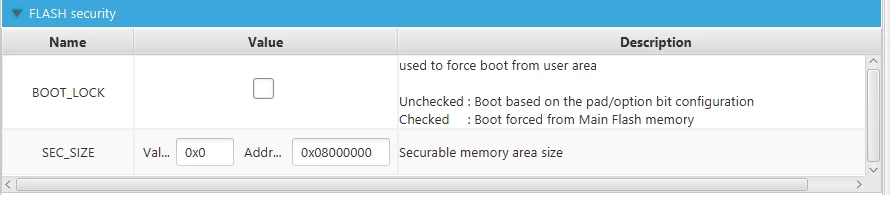

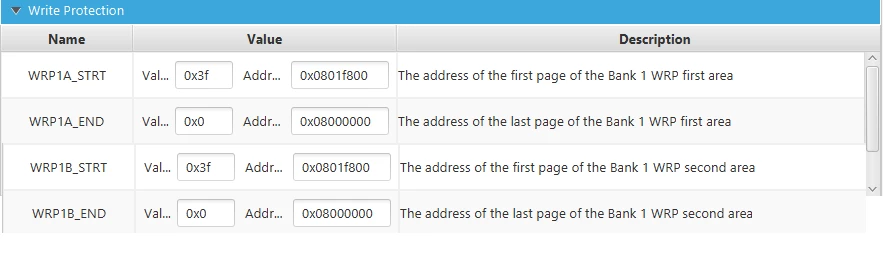

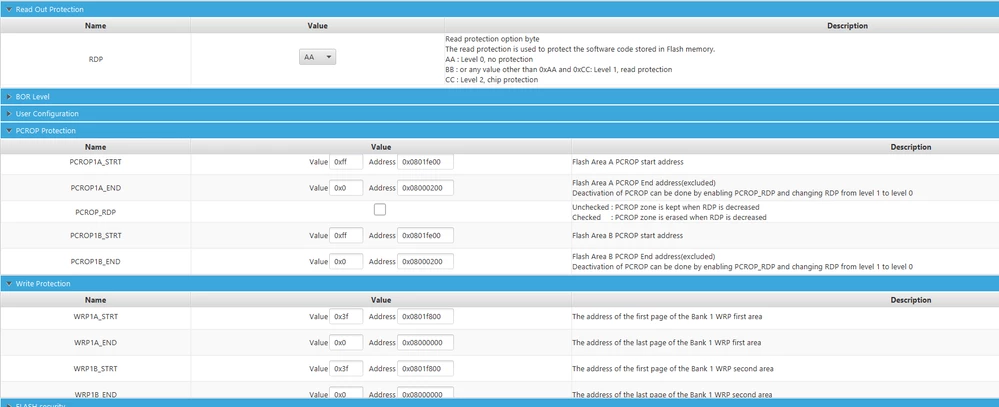

Can you check if you have activated some flash protection like PCROP, WRP or RDP?

The default value are these:

By changing the WWDG_SW bit you shouldn't have an issue like this one.

I have another question, are you using a nucleo board or a custom board?

Simon

[Karan 123]

Hi @STALA.1 (ST Employee)​

Thanks for update..

Please check below as update.

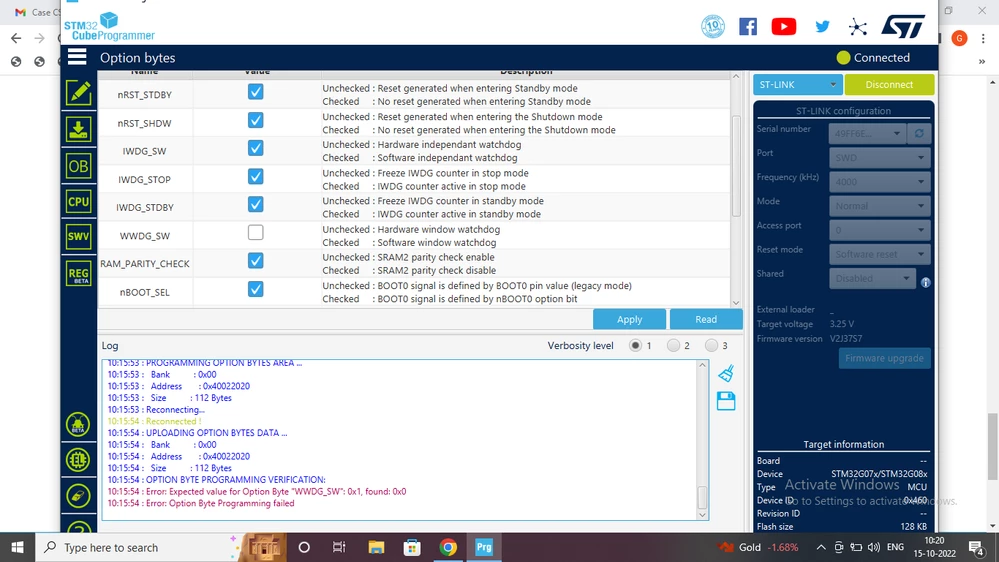

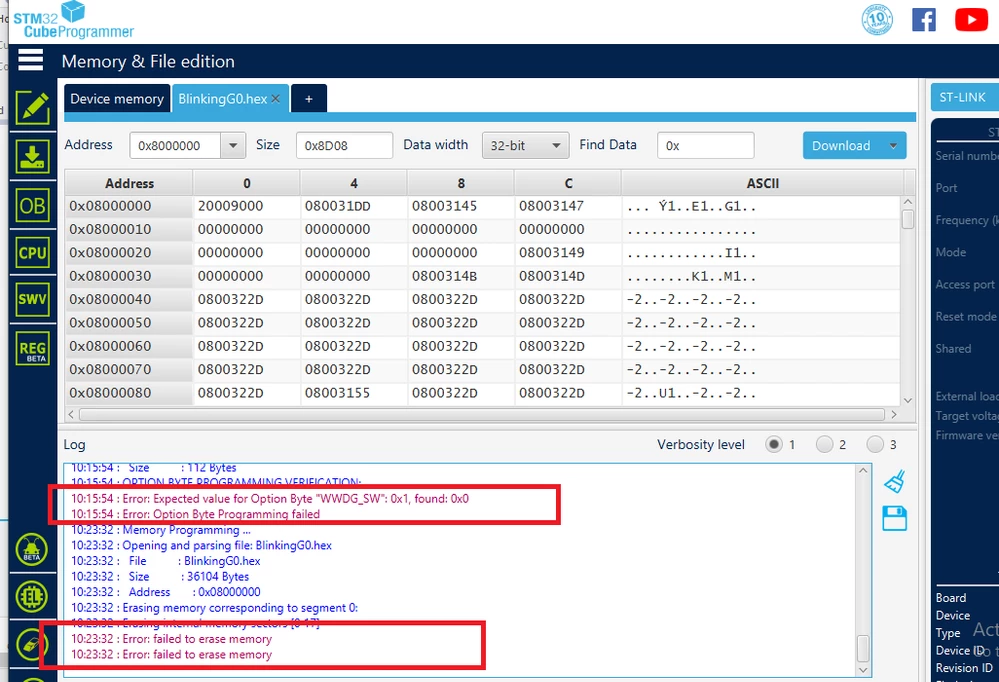

Error: Expected value for Option Byte

Why causing this issue ?

--

Gurpreet Singh
