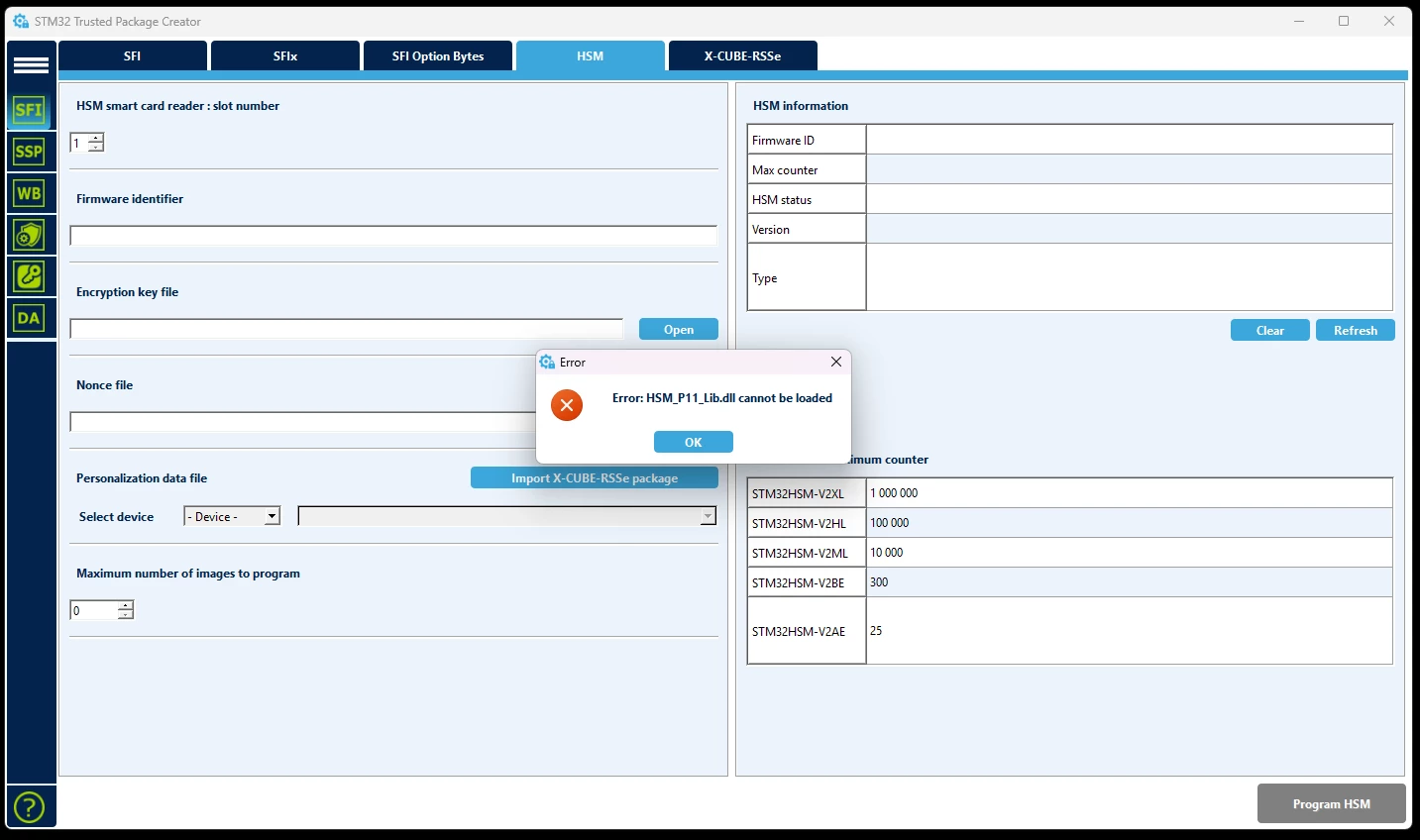

STM32TrustedPackageCreator problem with HSM, HSM_P11_Lib.dll cannot be loaded.

[Kipe]

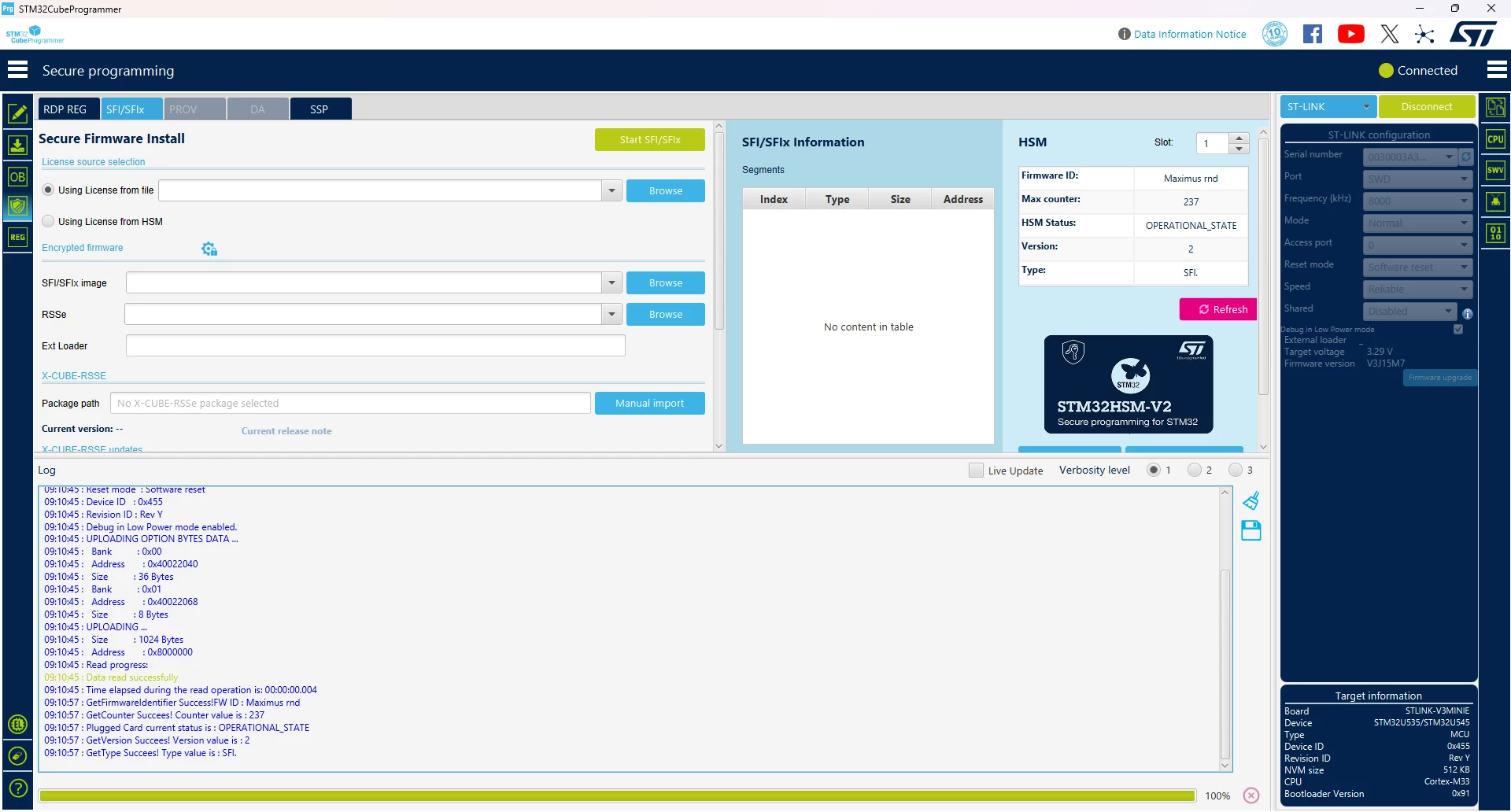

STM32CubeProgrammer_CLI STM32TrustedPackageCreator problem with HSM, HSM_P11_Lib.dll cannot be loaded. GUI STM32CubeProgrammer works fine. Where that dll should be located? I Am using win11 pro.



[Kouthair]

Hello @Kipe and welcome to the community!
HSM_P11_Lib.dll should be in /bin and in /api/lib folders.

[Kipe]

HSM_P11_Lib.dll should be in /bin and in /api/lib folders. They are in there.

In Trusted side it can't find HSM? always error about missing .dll? Cube programmer works, why?

[Kouthair]

Hello @Kipe,
I wasn't able to reproduce this behavior on my side.
Could you please try the following and let me know the result:

• Confirm that you installed the latest version of STM32CubeProgrammer v2.22 64-bit (since you're using Windows 11)
• Run TrustedPackageCreator as administrator.

Also to investigate further, can you provide me the exact windows version and the full path of both TrustedPackageCreator that you're running and the HSM_P11_Lib.dll.

[Kipe]

hi again.

I'm using 64-bit windows 11 Pro (24H2).

so I was thinking to use 64-bit installation for cubeprogrammer.

Installation path C:\Program Files\STMicroelectronics\STM32Cube\STM32CubeProgrammer\  .

Now I installed 32-bit cubeprogrammer to path

C:\Program Files (x32)\STMicroelectronics\STM32Cube\STM32CubeProgrammer\bin

and from there it works now fine.

So, is there some dependency on trusted side HSM for 32-bit or what? I'm very confused now.



[Kouthair]

Hello @Kipe ,
I was able to recreate the issue on my side, and the team is working on a fix. (Internal ticket ID: 0061138)

I'll let you know ASAP whenever the fix is delivered.

PS: Ticket ID: 0061138 is an internal tracking number and is not accessible or usable by customers.
