STSPIN32G4 not detected after first programming – Boot0 not exposed

[suyog1]

Hello,

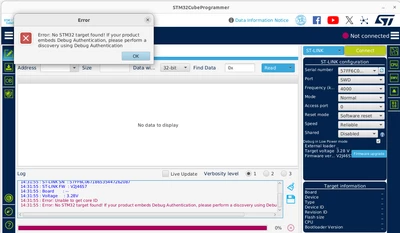

I’m working with the STSPIN32G4. I was able to program the MCU once successfully, but since then neither STM32CubeIDE nor STM32CubeProgrammer are able to detect it anymore.

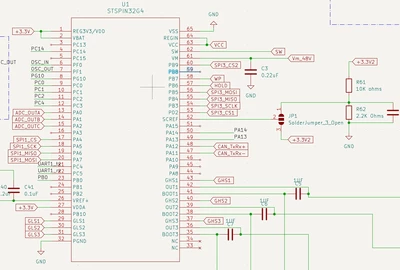

The main issue is that I did not expose the BOOT0 pin on my board, so I can’t easily force it into system bootloader mode.

Has anyone faced a similar issue?

• Is there any workaround without physical access to the BOOT0 pin?

• Would SWD still work if the application firmware misconfigured the debug pins?

• Any suggestions for recovering the MCU in this situation?

I’d really appreciate any help or guidance.

Thanks in advance!



[AScha.3]

Hi,

BOOT0  has to be on GND level. No workaround , if used as BOOT0 .

Otherwise try connect under reset (with hardware reset , nrst connected);

then set option bytes ...to not use BOOT0 pin as BOOT0 .

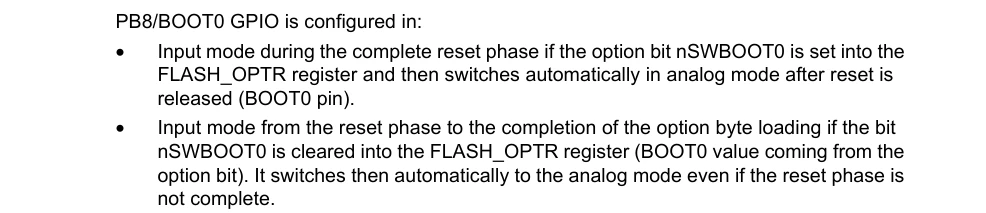

from rm STM32G4 :



[suyog1]

But I was able to program it using SWD once.

[Ozone]

> The main issue is that I did not expose the BOOT0 pin on my board, so I can’t easily force it into system bootloader mode.

This is probably a lapse you make only once. But a mass erase / de-bricking through the system bootloader is very common during development.

Your firmware probably hangs in a fault handler, or has locked up due to a critical error in a default handler.
As mentioned, you will need the BOOT0 pin.
Perhaps solder a wire contraption with a removable jumper to the pin.

In theory you can try to catch the core with the debugger after power-on reset before it faults, but the probability is close to zero.

[suyog1]

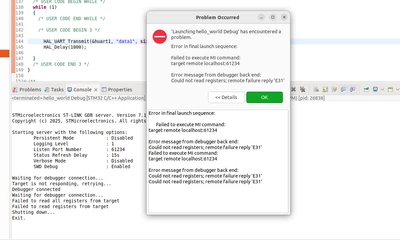

I have xonnected boot0 pin to gnd. Now I am able to connect to the MCU using cube programmer, but not able to program it!! Please help
I have attached the log file for reference.

[Ozone]

Have you tried a mass erase ?
The Cube programmer should support this.

The option byte and sector erase errors in the log file look strange, although I don't have any experience with the G431.

[suyog1]

Now some how I connected my boot-0 pin to GND. Now stm32cube programmer is able to connect to the MCU, but not able to program it. I have attached the log file from stm32 cube programmer. I was also able to download the option bytes of the MCU.

Till now, I was able to program it once after full chip erase using cube programmer. This is very weird behaviour.
