Unable to flash with STM32CubeProgrammer

[SimonHuwyler]

Hi,

I just installed STM32CubeProgrammer v2.17.0 on Linux.

When I connect to the board (tried with several different ones), I get the following error;

flash loader cannot be loaded. FlashLoaderPath = /home/[yadayada]/bin/FlashLoader/0x

I can read the flash, I can do everything, with the exception of flashing. This fails.

I first thought it might be a truncated log message. But when I just copied any of the loader files and gave it the file name "0x", I didn't get the error message. So it really looks for a file named "0x". It looks like in the code, the assembly of the file name (all the files match the pattern 0x*.stldr)



I tried to do an software update, but this also fails: "The updater package on server is corrupted"





[Cesare Riva]

Hi everyone,
I am running Linux Mint 22.3 XFCE edition and I am experiencing exactly the same problem described in this thread.
The problem started after a system upgrade. Luckily, I had an almost identical copy of my development environment running in a virtual machine, so I started upgrading one package at a time until I identified the package causing the issue.
The meta package name shown in the Update Manager is "mesa"

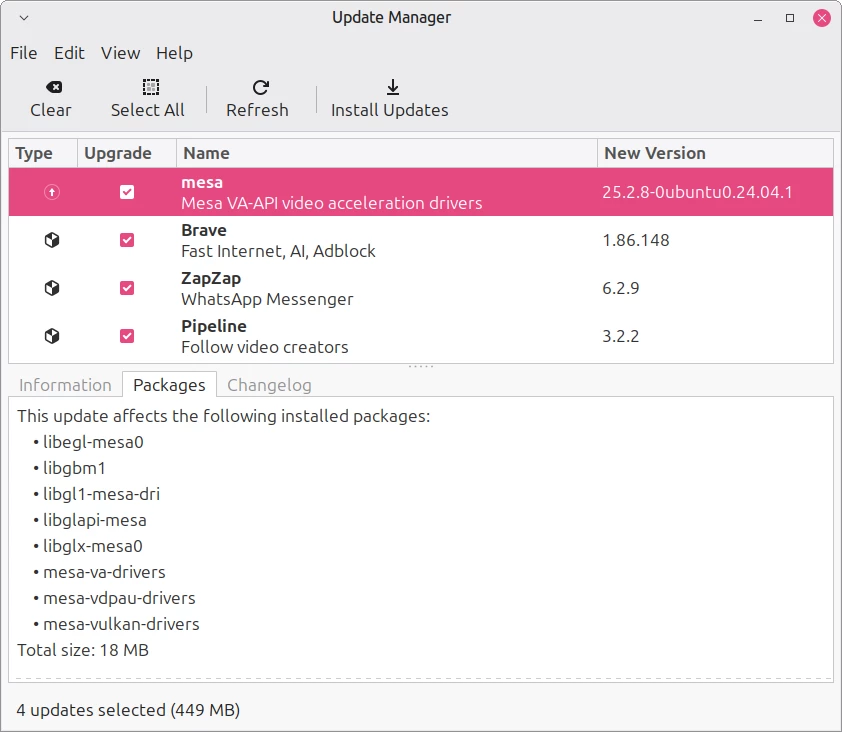

The affected packages are the ones listed in the screenshots:

• libegl-mesa0
• libgbm1
• libgl1-mesa-dri
• libglx-mesa0
• mesa-libgallium
• mesa-va-drivers
• mesa-vdpau-drivers
• mesa-vulkan-drivers

In my specific case, the issue was triggered when upgrading from version 25.0.7 to 25.2.8.
I then tried to downgrade these packages back to version 25.0.7 but it seems that version was removed from the repository; the only version available was 24.0.5.

You can check the available package versions in the repository using:

apt-cache policy <package-name>

cesare@cesare-vbox:~/issue$ apt-cache policy libgbm1
libgbm1:
 Installed: 24.0.5-1ubuntu1
 Candidate: 25.2.8-0ubuntu0.24.04.1
 Version table:
 25.2.8-0ubuntu0.24.04.1 500
 500 http://archive.ubuntu.com/ubuntu noble-updates/main amd64 Packages
 *** 24.0.5-1ubuntu1 500
 500 http://archive.ubuntu.com/ubuntu noble/main amd64 Packages
 100 /var/lib/dpkg/status



After multiple attempts, I was able to fix the issue by downgrading the offending packages to version 24.0.5:

sudo apt install libegl-mesa0=24.0.5-1ubuntu1 libgbm1=24.0.5-1ubuntu1 libgl1-mesa-dri=24.0.5-1ubuntu1 libglx-mesa0=24.0.5-1ubuntu1 libglapi-mesa=24.0.5-1ubuntu1 mesa-va-drivers=24.0.5-1ubuntu1 mesa-vdpau-drivers=24.0.5-1ubuntu1 mesa-vulkan-drivers=24.0.5-1ubuntu1



@Kouthair
I hope this helps the STM team identify the root cause.

[dave23]

Same issue here, I tried your suggested fix (downgrading the list of packages) and it worked for me

[nilesh-dryad]

Yes it happened automatically with some system module update. It was working fine and suddenly stopped working.

[Kouthair]

Hello everyone,

This issue has been fixed in STM32CubeProgrammer v2.22. You can download it via this link.

[debugging]

Tested and 2.22 Works for me using a STV3MOD.
