write flash fail via i2c bootloader

[YLU.2]

Recently I'm using STM32G051 and try to write flash via i2c bootloader.

Below are my steps:

1. Use STM32CubeProgrammer to set nBOOT0_SEL = 1 / nBoot0 = 0 /nBoot1 = 1 to enter BL mode
2. Disconnect ST link, and use i2c host tool (Aardvark) to send i2c write (no-stretch) command 0x32, 0xcd
3. Read 1 byte, get ACK (0x79) frame successfully.
4. Send 5 bytes start address(0x08000000) with XOR checksum (0x08)
5. Read 1 byte, get ACK (0x79) frame successfully.
6. send 10 bytes writeLength(0x08), data(0x11,0x22,0x33,0x44,0x55,0x66,0x77,0x88), checksum (0x80)

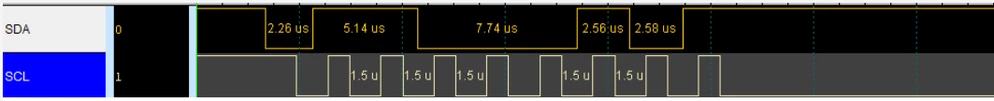

7. Problem here!! read 1 byte and expect to get ACK(0x79) or BUSY(0x76), but I saw CLK is stretched at 9th bit of address phase:


I've checked all read/write protection are disabled via STM32Programmer, and I can access read flash and erase flash successfully, only write process fail. Is any one have encounter similar issue and tell me if my procedure is not correct?

Many thanks.

[Kamil Duljas]

Hi,

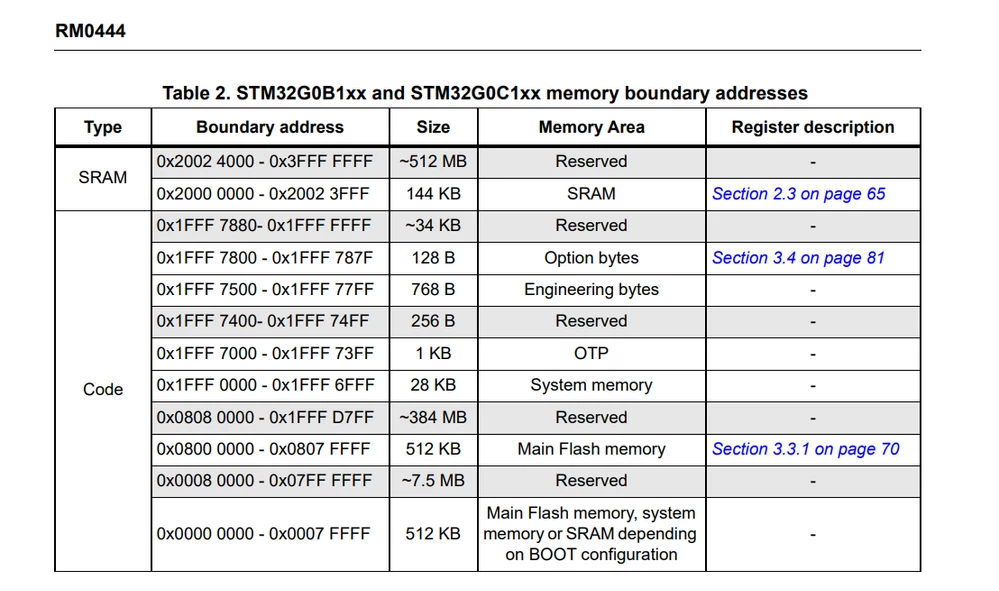

flash memory start form address 0x0800 0000 not 0x0008 0000. You passed addres that is marked as reserved.

[YLU.2]

Hi Kamil,

Sorry for my typo, I've written the start address with 0x08000000 and the XOR checksum (0x08)

And still have the issue.

Thanks.

YenLu

[Kamil Duljas]

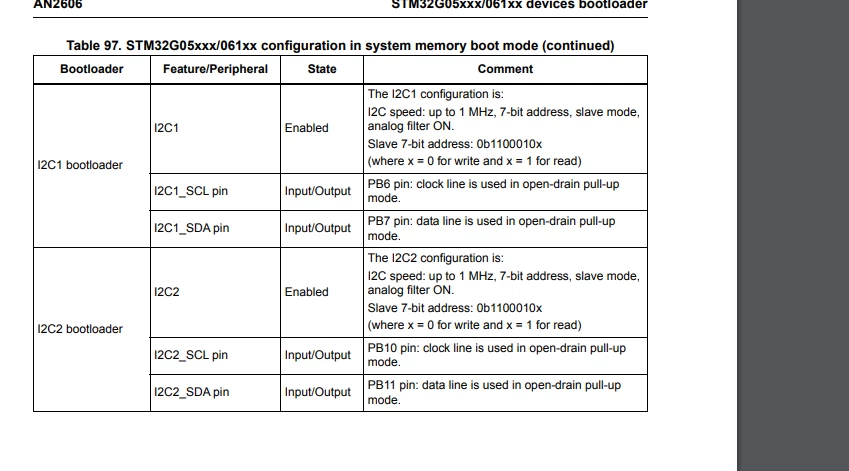

Ok :) Next question, were you send bootloader address ? in application note i see other adressess than yours. What is this sequention 0x32 0xcd?

[YLU.2]

Hi Kamil,

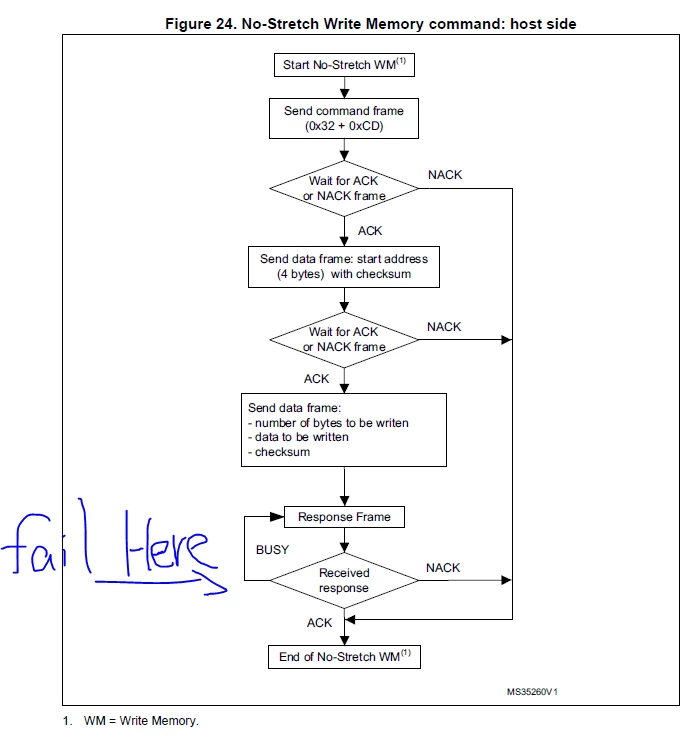

I omitted the i2c address byte when I described the step above. I've read/write the address 0x62 and everything is fine until waiting the ack response for data written. The sequence (0x32, 0xcd) is No-Stretch Write Memory command which is described in AN4221:



[Kamil Duljas]

@YLU.2​ did you resolve problem?

[YLU.2]

Yes,

for 8 byte write, I should send 0x07, 0x11,0x22,0x33,0x44,0x55,0x66,0x77,0x88, 0x8f

after correct the format, I get ack and write the memory successfully.
